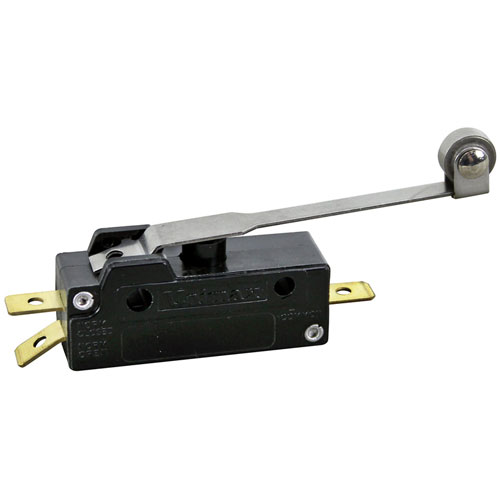

Baxter 01-1000V6-00332 Oven Micro Lever Roller Switch SPDT 12A 125 VAC

SKU: 01-1000V6-00332 1-01-1000V6-00332 Brand:
Baxter
Availability:
In Stock
(4)
$42.07 Price reduced from $54.64
Save $12.57
Have a Question? +1 (866) 863-0907

Specifications:

  • Micro Lever Roller Switch, Long Lever
  • Volt/Amp (15A-125/250V)~
  • Action (Spdt)~
  • Terminals (3-1/4" Tab)~
  • Style (Roller)~
  • (1" Mounting Screw Centers

Description

The Baxter 01-1000V6-00332 Micro Lever Roller Switch SPDT 12A 125 VAC is a single-pole, two-contact switch that has been designed to operate the electrical circuit of an oven. It works by pressing or releasing the lever roller to enable current to pass in a direction and cut off in the other, which basically controls the operations. This switch is commonly installed to control assembly, and is placed in such a manner that it directly contacts the control mechanism to allow the roller to slide freely during use. The size of this part is small enough to fit into limited spaces.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 3.5 in
  • Height: 0.63 in
  • Width: 1.5 in

BAXTER:

1000V6-00332

HOBART:

1000V6-00332

Step1: Power down the oven and open the service panel.

Step2: Locate the door or rack sensing switch.

Step3: Remove mounting screws and detach wiring.

Step4: Install the new switch, ensuring lever alignment.

Step5: Reconnect wires securely.

Step6: Close the panel and test switch activation with door movement.

  • What maintenance is required for the Baxter 01-1000V6-00332 Micro Lever Roller Switch?

    Inspect the roller and lever for smooth operation. Remove buildup that may hinder movement. Verify tight wiring connections. Routine care supports maintaining accurate temperature control and switch performance.

  • What are the common issues with the Baxter 01-1000V6-00332 Micro Lever Roller Switch?

    • Roller binding or sticking.
    • Intermittent contact from loose terminals.
    • Switch not actuating reliably.
    • Wear on the lever affects the operation.
    • Electrical failure under heat exposure.
