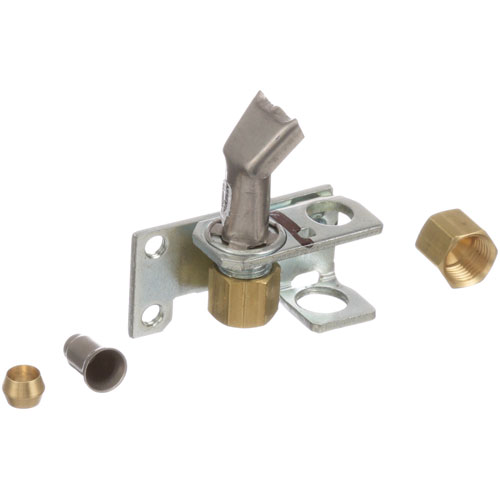

Southbend 1163869 Range Pilot Burner Natural Gas

SKU: 1163869 1-1163869 Brand:
Southbend
Availability:
In Stock
(2)
$32.84 Price reduced from $58.65
Save $25.81
Have a Question? +1 (866) 863-0907

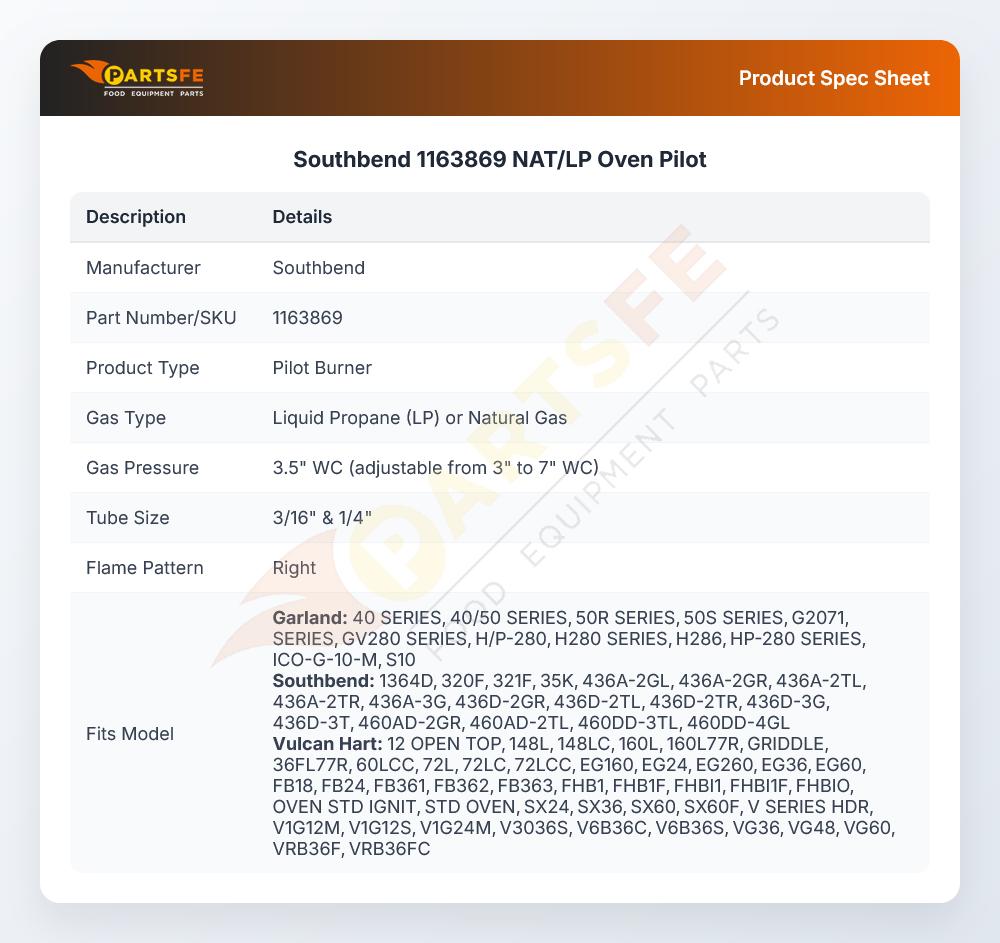

Specifications:

  • Nat/Lp Pilot, Factory # 2Ch-10, 1830-115, 1830-500,
  • Tube Size 3/16" & 1/4", Flame Pattern Right
  • Garland Oven Series: Bco, Eco, G48P, G2000, Ico.
  • Southbend Oven 321D After 1982 (1982 & Prior Use Oem #
  • 1164282).Series: 136 & 142 W/Suffix C Or D But W/O Co
  • Prefix, 300 W/F Suffix.
  • Us Range Oven Series: Performer Ii (Right Side) W/Standing
  • Pilot.(Units W/Electronic Pilot Use M-214)
  • Vulcan Hart Oven 260L-77R, 319A-77R, 399A-77R, Series: Eg,
  • Vg.Sg-60L-77R, Sg-260L-77R.24L, 48L, 481L/Lc, 148L/Lc,
  • 36L/Lc, 60L/Lc/Lcc 160L/Lc, 260L/Lc/Lcc
  • Wolf Model?

Description

The Southbend 1163869 Range Pilot Burner is used to start the ignition process by supplying a constant natural gas flame to start the main burners when they are turned on. It operates by passing gas through its orifice and keeping a small flame which lights up the larger burners when necessary. This pilot burner is designed to be used in a compatible commercial range, and is placed in the burner assembly area so that it may be properly ignited. It is a component of the natural gas systems designed to be a key ignition component to ensure the cooking process of the equipment continues without necessarily interacting with other components of the system of the range.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.75 in
  • Width: 2 in

FRYMASTER:

810-2403 8102403

GARLAND:

1028200 1028297 1028298 1028299 1091898 1091899 11769-2 11769-2 (GARLAND) 227198 227198-1 GL1028299 GL11769-2 GL11769-2 (GARLAND)

HOBART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2

SOUTHBEND:

1163870 SOU1163869 SOU1163870

U-LINE:

1830-115 1830-11E

VULCAN HART:

00-412787-00001 00-412787-00002 112787-1 112787-2 412787-00001 412787-00002 412787-1 412787-2 VH109839-6 VH112787-1 VH112787-2 VH409839-6 VH412787-1 VH412787-2

Step1: Turn off the gas supply before starting.

Step2: Remove the old pilot burner and disconnect tubing.

Step3: Position the new burner in place and connect the gas line securely.

Step4: Check alignment of the flame and tighten all fittings.

Step5: Restore gas and test ignition and proper operation.

  • What maintenance is required for the Southbend 1163869 Pilot Burner?

    Regularly inspect the pilot burner for grease, soot, or debris that may block the flame. Clean the orifice gently to maintain a steady flame. Check gas connections for leaks and ensure proper alignment. Routine maintenance supports ensure accurate ignition and safe operation.

  • What are common issues with the Southbend 1163869 Pilot Burner?

    • Pilot flame not staying lit.
    • Weak or irregular flame pattern.
    • Clogged or dirty burner orifice.
    • Gas flow interruptions affecting ignition.
    • Misalignment causing inconsistent performance.
