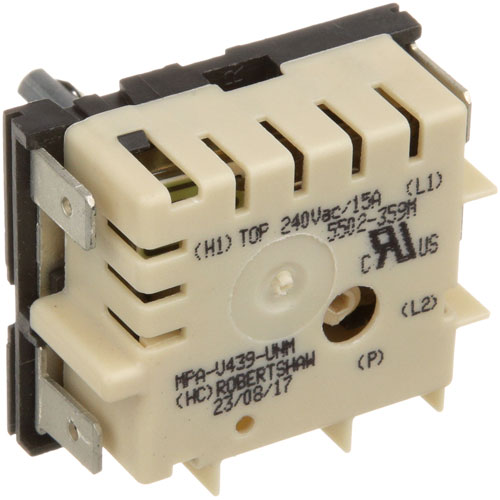

Star 2E-30305-01 Infinite Switch

SKU: 2E-30305-01 1-2E-30305-01 Brand:
Star Mfg
Availability:
In Stock
(1)
$49.08 Price reduced from $63.75
Save $14.67
Have a Question? +1 (866) 863-0907

Specifications:

  • Infinite Switch, 240V, 15 Amp, Palnut Mount,
  • .187" Flat Down
  • Lang Dial # 22-1555, Offf-Warm-Low-Med-High
  • Gen Use Black Dial, Off-Lo-2-6-Hi, # 22-1349
  • Delfield Model?
  • Duke Oven E304M
  • Henny Penny Warmercmt-(5,7), Cw-114, Cw-216,
  • Dw-(112,113,213,215),Hst-(3,5), Hmi-103.
  • Series: Cm, Hcw, Hs.
  • Lang/Star Broilers: 1B(012,030,C12S,018S), 2B(C24S,030S),
  • 36S-Sh (Before S/N A67127).
  • Range: 43S, Csu-12~
  • Rf21S & F42S (Before S/N C35556),
  • Sr-18 (Before S/N D65000).
  • Toastmaster Toaster Series: Tc17A, Tc21A Series: Tc17D
  • S/N 000010104 & After, Tc21D S/N 000010204 & After

Description

The Star Mfg 2E-30305-01 Infinite Switch is a panel-mounted control that adjusts the electrical current flowing to heating elements within a continuous range of settings permitting control of the amount of heat produced instead of toggling between fixed settings. It has a rotary mechanism attached to control shaft such that the rotation of the knob varies the power level of the element. This is an unlimited switch that is mounted in the control panel of compatible cooking or warming parts and has terminals that are used on the back of the component to be wired.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.75 in
  • Height: 2.5 in
  • Width: 1.75 in

CECILWARE:

GML040A GML040F L040A L040F

HATCO:

02-19-019 02.19.019 2-19-019 2.19.019 HT02-19-019 HT02.19.019 HT2-19-019 HT2.19.019 HTR02-19-019 HTR02-19-019-00 HTR02.19.019 HTR02.19.019.00 R02-19-019 R02-19-019-00 R02.19.019 R02.19.019.00

HENNY PENNY:

-23560 23560

LANG:

-2E-30305-01 -2E-30305-06 -30305-01 -30305-06 2E-30305-06 2E30305-01 2E30305-06 30305-01 30305-06 LG2E30305-01 LG2E30305-06 LG30305-01 LG30305-06

MAGIKITCH'N:

-34-02-00533A -3402-0053300 -83

MARKET FORGE:

-1494848 10-5992

MIDDLEBY MARSHALL:

-3006099 3006099

SECO:

713 8-3150 8-3200 SEC713 SEC8-3150 SEC8-3200

STAR MFG:

-2E-30305-06 -2J-3006099 2E-30305-06 2E30305-06 2J-3006099 3006099

STERO:

STA2E-30305-01 STA2E30305-01

U-LINE:

5502-359 5502-404 INF240-74

Step1: Turn off power and unplug unit to avoid electric shock hazards.

Step2: Remove control panel cover carefully using proper tools.

Step3: Label and disconnect all wiring connections.

Step4: Remove old switch mounting nut and extract switch.

Step5: Install new switch in the same position securely.

Step6: Reconnect wires according to wiring diagram or notes.

Step7: Secure panel, restore power, and test operation safely before use.

  • What maintenance is required for the Star 2E-30305-01 Infinite Switch?

    Inspect electrical connections regularly to ensure tight and secure wiring. Clean contacts to prevent carbon buildup and ensure smooth operation. Keep the switch dry and protected from moisture. Perform periodic electrical checks to maintain better, stable heat control performance.

  • What are common issues with the Star 2E-30305-01 Infinite Switch?

    • Intermittent heat control failure.
    • Knob not adjusting power levels.
    • Internal contact wear causing erratic output.
    • Overheating or burning smell from switch.
    • Complete loss of power regulation.
    • Inconsistent temperature cycling.
    • Loose electrical connections at terminals.
