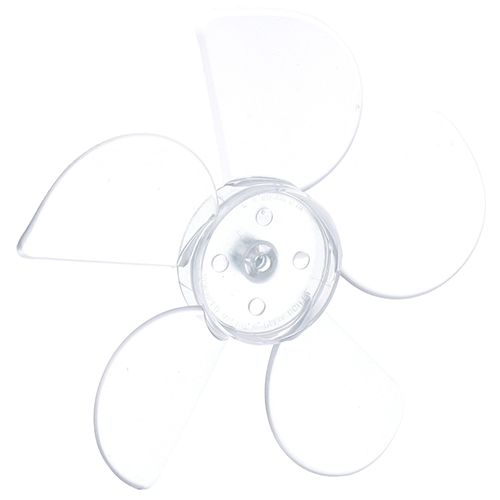

Delfield 3516172 Evaporator 5-Blade Fan W/0.181" Hole CCW Clear Lexan

SKU: 3516172 1-3516172 Brand:
Delfield
Availability:
In Stock
(0)
$11.24
Have a Question? +1 (866) 863-0907

Specifications:

  • Fan Blade, 5-1/4" Dia. X .181" Hole, 5 Blades,
  • Ccw, White Plastic
  • Delfield 18648-Ptb, 18648Ptb, 18691-Ptb, 18699-Ptb,
  • 18699Buc, 18699Ptb, 18Sc39R, 225, 225L, 227, 227L, 402, 403,
  • 406, 406-Ca, 406Cp, 407, 407-Ca, 536-Sr68, 536-Srr68,
  • 6025Xl-G, 6025Xl-Gh, 6025Xl-S, 6025Xl-Sh, 6025Xlr-G,
  • 6025Xlr-Gh, 6025Xlr-S, 6025Xlr-Sh, 6125Xl-S, 6125Xl-Sh,
  • 6125Xlr-S, 6125Xlr-Sh, 6151, 7048-M, 7048-P, 7048-S, Asm-36,
  • Asm-48, Asm-60, Ctp8146-Nb, Ctp8160-Nb, Ctp8175-Nb,
  • Delfield, F18Rc48R, F2952C, F5Pr48N, F5Pr72N, Md1R2-S,
  • Md2R2-S, Md6R1-Sh, Mfr1-G, Mfr1-S, Mfr1N-S, Mfr1S-S, Mfri-S,
  • Mfri1-S, Mrpt1-G, Mrpt1-Gs, Mrpt1-S, Mrr1-G, Mrr1-S,
  • Mrr1N-S, Mrr1S-S, Mrri-S, Mrri1-S, Mrrt1-G, Mrrt1-S, N225,
  • N225L, N227, N227L, N8118B, N8130B, N8131-Fa, N8143B,
  • N8144-Br, N8144-Fa, N8146Nb, N8157-Fa, N8159-Br, N8168Nb,

Description

The Delfield 3516172 Evaporator 5-Blade Fan 0.181" Hole CCW Clear Lexan is a counterclockwise rotating evaporator filter with a motor hub attached to it. The plastic construction has 5 blades that direct the airflow in a uniform manner as the shaft rotates over the centered mounting hole. It is fitted in the cooling part of the compatible refrigeration equipment behind the sealing cover. This element directly communicates with the evaporator motor to facilitate the constant flow of air in the cooling system.

Dimensions:

  • Weight: 0.05 lbs
  • Length: 6 in
  • Height: 1 in
  • Width: 6 in

DELFIELD:

3516172-S

Step1: Disconnect power and ensure unit is off.

Step2: Remove access panel and old fan blade.

Step3: Align new blade on motor shaft (CCW orientation).

Step4: Secure set screw and tighten firmly.

Step5: Reassemble panel and restore power.

Step6: Test airflow and listen for vibration.

Step7: Ensure power is off before handling sharp edges.

Step8: Verify blade clearance from housing.

  • What maintenance is required for the Delfield 3516172 Fan Blade?

    Inspect the fan blade periodically for dirt buildup and balance. Clean with a mild detergent to prevent vibration regularly. Tighten mounting hardware and ensure alignment. Check for cracks or deformation during service.

  • What are common issues with the Delfield 3516172 Fan Blade?

    • Imbalance causing excessive vibration during operation.
    • Blade wear, cracking, or bending of fan blade edges.
    • Loose mounting hardware is causing noise and instability.
    • Dirt buildup reduces airflow and efficiency over time.
