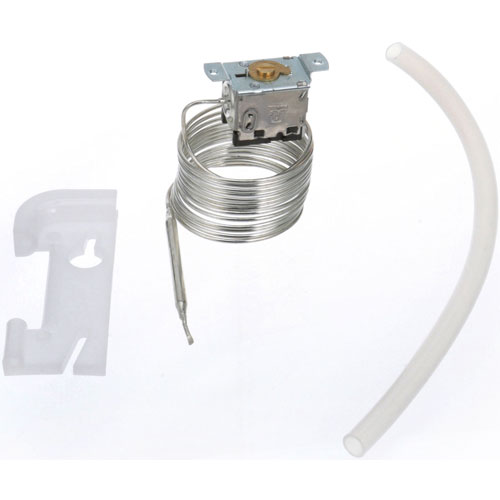

Ranco A30-3953-000 Ice Machine Bin Thermostat W/Bulb Holder

A temperature control component used in ice machine bins, this thermostat monitors internal conditions to manage when ice production should continue or stop. It uses a sensing bulb measuring 1/4" x 4" connected to an 84-inch capillary tube. This setup allows it to detect temperature changes within the storage bin. When the bin reaches the set condition, the thermostat sends a signal to pause ice production. This helps prevent excess ice buildup. Designed for commercial ice equipment, this thermostat supports effective bin management by responding to temperature variations during use. It is commonly found in ice machines used in restaurants, hotels, and foodservice environments where controlled ice production is necessary. The included bulb holder and mounting tabs help position the sensor correctly. This ensures accurate response and consistent system performance throughout daily use.

Equipment Compatibility:
Typical applications for Ranco Ice Machine Bin Thermostat include commercial ice makers used in restaurants, hotels, bars, and foodservice facilities where accurate bin temperature sensing is required to regulate ice production cycles and prevent overflow. This Ice Machine Bin Thermostat A30-3953-000 is compatible with commercial equipment from leading brands such as Hoshizaki, Manitowoc, Scotsman, Ice-O-Matic, Cornelius, and more, where precise bin temperature monitoring is needed to ensure controlled ice production and consistent system performance.

Brand Compatibility:
This component replaces multiple bin thermostat part numbers used across commercial ice machine systems from brands such as Hoshizaki, Ranco, and related refrigeration equipment manufacturers, where accurate ice bin temperature control is required for proper ice production regulation and overflow prevention. Complete cross-reference details are provided separately.

Product Specifications:
Product Type: Ice Machine Bin Thermostat
Manufacturer: Ranco
SKU: A30-3953-000
Capillary Length: 84 inches for extended sensing reach inside the bin
Bulb Size: 1/4" x 4" for detecting internal temperature changes
Tube Size: 5/16" inner diameter x 14" length
Mounting Centers: 2.2" spacing with 1/4" tabs
Included Component: Bulb holder for proper sensor positioning
Application: Ice machine bin temperature control systems

Key Features:

• The 84-inch capillary tube allows flexible routing, helping the sensing bulb reach the correct location inside the bin.
• The 1/4" x 4" bulb detects temperature shifts and signals the machine to control ice production accordingly.
• The included bulb holder keeps the sensing element in place for accurate readings during operation.
• The 2.2" mounting centers with tabs allow secure installation in compatible ice machines.
• It helps regulate ice production by responding to bin conditions, supporting consistent machine operation.

After installing the new bin thermostat, ice levels stayed controlled, and the machine cycled properly again.

Step1: Shut off power to the ice machine.

Step2: Remove the access panel covering the old thermostat.

Step3: Disconnect wiring and remove the old thermostat.

Step4: Install the new thermostat in the same orientation.

Step5: Reconnect wiring to the correct terminals.

Step6: Secure the thermostat with screws.

Step7: Replace the panel and restore power.

Step8: Test the ice machine for proper bin temperature.

• What maintenance is required for the Ranco A30-3953-000 Thermostat?

  Inspect thermostat probe and wiring for corrosion, dirt, or loose connections. Mount securely and test the operation. Proper maintenance ensures accurate bin temperature monitoring and consistent ice production.

• What are the common issues with the Ranco A30-3953-000 Thermostat?

  • Incorrect temperature readings.
  • Loose or corroded sensor connections.
  • Failure to cycle harvest properly.
  • Thermostat stuck open or closed.
  • Ice machine stops prematurely.
  • Probe damage from moisture or ice.
  • Erratic ice production.
