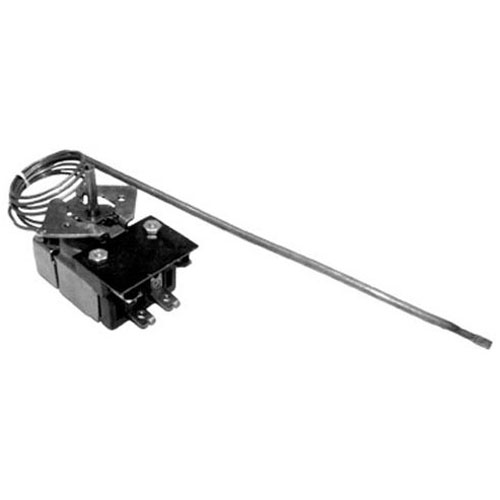

Bakers Pride AS-M1019X Thermostat Kit W/Blub 3/16" X 12-1/4"

SKU: AS-M1019X 1-AS-M1019X Brand:
Bakers Pride
Availability:
In Stock
(0)
$234.04 Price reduced from $373.28
Save $139.24
Have a Question? +1 (866) 863-0907

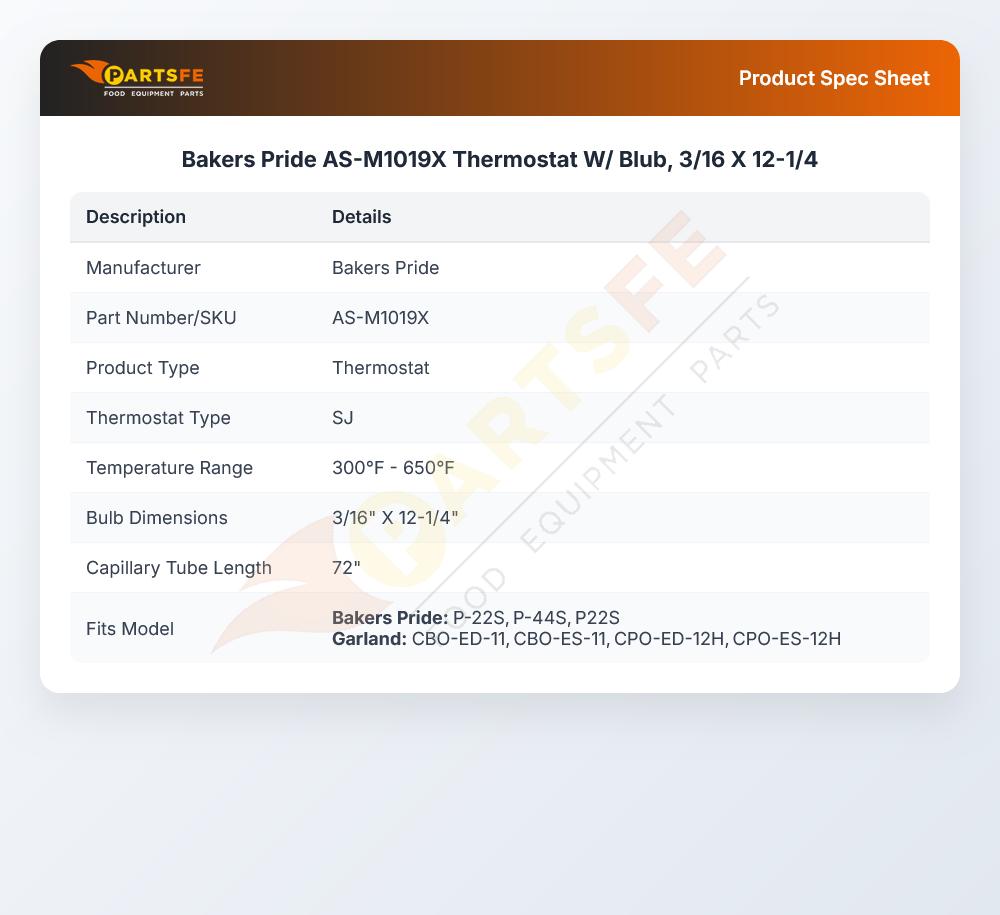

Specifications:

  • [ T'Stat - Sj ] [ Temp 300-650 ]
  • [ Bulb 3/16" X 12-1/4" ] [ Cap 72" ]
  • [ Dial To Use # 221205 Off-700-300 ]
  • Bakers Pride

Description

The Bakers Pride AS-M1019X Thermostat Kit with Bulb 3/16" X 12-1/4" is a temperature sensor that uses its sensing bulb to transmit data to the control system of the cooker in order to control the heat. The 12 1/4" bulb and 3/16" capillary enable the insertion of the sensing element where accurate input is required. The thermostat is designed to be fitted at the required point of temperature control in a compatible cooking system. It assists in keeping the desired cooking temperatures as well as allowing normal operation.

Dimensions:

  • Weight: 0.8 lbs
  • Length: 12 in
  • Height: 2.5 in
  • Width: 2.5 in

BAKERS PRIDE:

AS-M1022X BKPM1022X M1019X M1022X

GARLAND:

1948302

Step1: Turn off gas and electrical supply and allow oven to cool completely before servicing.

Step2: Remove the access panel and locate the thermostat assembly inside the control compartment.

Step3: Disconnect old bulb capillary carefully from the thermostat body.

Step4: Install a new bulb in sensing position securely within the oven cavity.

Step5: Secure thermostat mounting and wiring connections firmly.

Step6: Refit panel and restore the power supply safely.

Step7: Test temperature control and verify proper operation carefully.

  • What maintenance is required for the Bakers Pride AS-M1019X Thermostat?

    Inspect the thermostat bulb, capillary tube, and control connections regularly for signs of wear, kinks, or damage. Keep the control area free of grease and debris to ensure accurate temperature sensing. Periodically verify that the unit maintains the selected temperature range and responds correctly to adjustments.

  • What are common issues with the Bakers Pride AS-M1019X Thermostat?

    • Inaccurate temperature regulation causing overheating or underheating.
    • Failure to cycle burners or heating elements properly.
    • Damaged capillary tube resulting in loss of temperature control.
    • Sticking thermostat contacts causing inconsistent operation.
    • Temperature drift between the set point and actual temperature.
