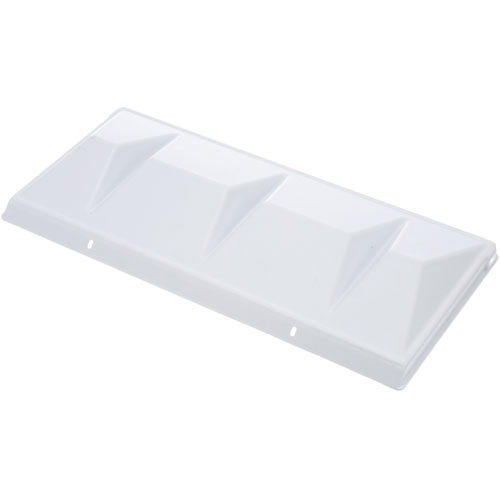

Hoshizaki 104322-01 Baffle B-250/B-500

A baffle component installed within compatible Hoshizaki ice storage equipment to guide the movement and distribution of stored ice inside the storage area. The Hoshizaki 104322-01 baffle helps maintain the intended internal arrangement by controlling the path of ice as it moves through the compartment. It functions as part of the storage area configuration for B-250 and B-500 equipment.

Equipment Compatibility:
Designed for use with compatible Hoshizaki B-250 and B-500 ice storage equipment. Technical Specifications: Brand: Hoshizaki Part Number: 104322-01 Product Type: Baffle Application: B-250 / B-500

Product Specifications:

Key Features:

• Guides the movement and distribution of stored ice within the storage area.
• Helps maintain the internal arrangement of the ice storage compartment.
• Provides the specified baffle configuration for B-250 and B-500 equipment.

Step1: Disconnect power supply to appliance before service.

Step2: Remove front panel and locate existing baffle assembly.

Step3: Unscrew and carefully detach old baffle, noting orientation.

Step4: Position new baffle in alignment guides.

Step5: Secure with screws and ensure tight fit.

Step6: Reinstall panel and restore power, test operation.

• What maintenance is required for the Hoshizaki 104322-01 Baffle?

  Regularly inspect the baffle for buildup, cracks, or warping that may affect airflow. Clean it with mild detergent to prevent debris accumulation. Proper maintenance ensures efficient operation and airflow control. Always turn off equipment before handling for safety.

• What are common issues with the Hoshizaki 104322-01 Baffle?

  Common issues include clogging from grease or debris, warping due to heat exposure, improper fit causing airflow disruption, and physical damage like cracks. These problems can reduce efficiency, cause uneven performance, or lead to equipment overheating.
