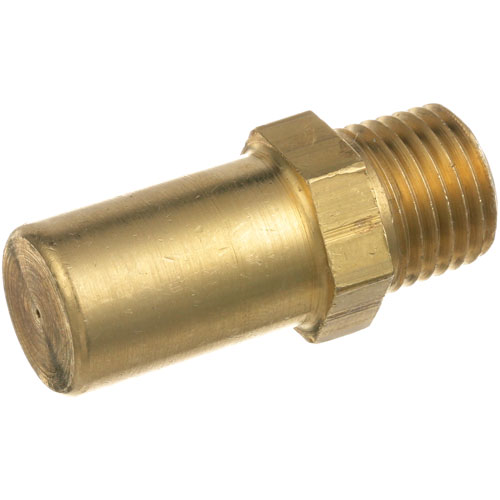

Blodgett BL8717 Burner Orifice

SKU: BL8717 1-BL8717 Brand:
Blodgett
Availability:
In Stock
(0)
$61.10 Price reduced from $79.34
Save $18.24
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice, 1/4" Mpt, #72
  • 1/4-18 Mpt, #72
  • 1-1/2" X 1/2" Od.
  • Blodgett 1000, 1048, 1060, Dfg, Fa, Gzl, Zephaire

Description

The Blodgett BL8717 Burner Orifice regulates the flow of gas by forcing the fuel through an opening that has been calibrated, and then it is directed to the burner. When the gas is flowing through the valve, the pressure and flow rate are adjusted to correspond to the design of the burner. This opening is fitted on the gas manifold, which is placed on the inlet of the burner tube. The component is employed in installation or servicing to adjust the correct gas supply in the fuel system of the cooking equipment.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 1.5 in
  • Height: 1.5 in
  • Width: 0.25 in

BLODGETT:

19409 8717 BL19409

Step1: Turn off gas supply and electrical power; allow appliance to cool completely.

Step2: Remove access panels and burner assembly to reach existing orifice.

Step3: Unscrew and replace with correct orifice, ensuring proper fit.

Step4: Verify orifice size matches manufacturer specification before installation.

Step5: Reassemble burner components and secure all fasteners tightly.

Step6: Restore gas supply and perform leak test with approved solution; check flame operation.

  • What maintenance is required for the Blodgett BL8717 Orifice?

    Inspect the orifice regularly for blockages or buildup that can restrict gas flow. Clean it carefully using proper tools without enlarging the opening. Ensure proper placed and tight connections. Always shut off gas supply before servicing to prevent leaks or accidents.

  • What are common issues with the Blodgett BL8717 Orifice?

    • Clogging or blockage restricting gas flow.
    • Irregular flame or uneven burner performance.
    • Incorrect gas flow is causing weak or excessive flames.
    • Thread damage leading to gas leaks.
    • Improper sizing affects combustion efficiency.
