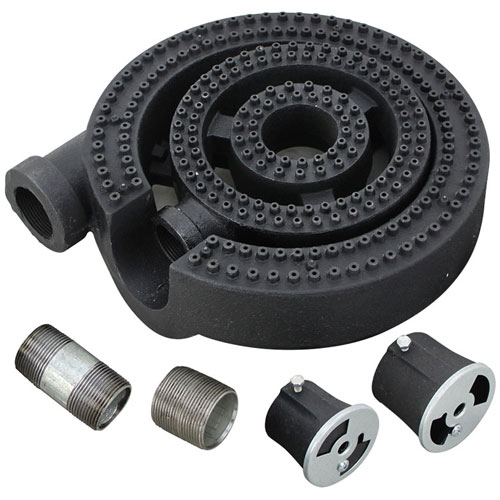

Imperial 2103 Range 3-Ring Cast Iron Burner Assembly W/pipe Nipples Air Shutters 12" DIA
Specifications:
- 3 Ring Cast Iron Burner Assy
- 12" Dia, 90,000 Btu
- Now Complete W/Pipe Nipples.
- Air Shutters Are Both Same Size,
- Single Air Shutter With 2 Windows, 2.848" Id, .467" Hole.
- For Air Shutter Only Use # 26-2729
- Dynamic Cooking Systems
- Imperial Range Ispa, Tempura
Description
Dimensions:
- Weight: 6.45 lbs
- Length: 13 in
- Height: 7 in
- Width: 14.5 in
Step1: Turn off gas supply and allow the unit to cool completely before servicing.
Step2: Remove grates and lift out the existing burner assembly from the range top.
Step3: Disconnect the gas feed/orifice and any mounting hardware securing the burner.
Step4: Position the new burner assembly, aligning it with the gas inlet and supports.
Step5: Secure with original hardware and reconnect the gas line tightly.
Step6: Restore gas supply, check for leaks, and test for a stable, even flame.
-
What maintenance is required for the Imperial 2103 Burner Assembly?
Clean Range burner ports and air shutters regularly to prevent clogging and uneven flame. Inspect pipe nipples and connections for gas leaks or corrosion. Ensure proper alignment for safe combustion and efficient heat output.
-
What are common issues with theImperial 2103 Burner Assembly?
- Uneven flame distribution due to clogged burner ports.
- Gas leakage from worn pipe nipples or fittings.
- Poor ignition caused by dirty air shutters or misalignment.
- Overheating or warped cast iron burner assembly under heavy use
Customer Reviews
Write a Review
-
Works Great
Replaced old burner, works perfectly now
