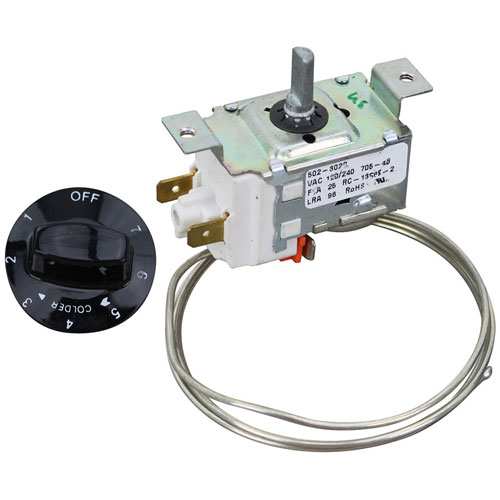

Beverage Air 502-302B Refrigerator Thermostat W/Knob 16°F-50°F 32" CAP

This thermostat is used in commercial refrigerators to control and maintain the inside temperature. It works by turning the compressor on and off based on the temperature inside the unit, helping keep food stored safely. It operates within a 16–50°F range and includes a sensing system with a capillary tube and a knob that lets users adjust the temperature easily. The sensing bulb checks the temperature inside the cabinet and sends signals to keep the cooling steady and balanced. This thermostat is commonly used in refrigerators, prep tables, and undercounter cooling units found in restaurants and commercial kitchens. If the thermostat stops working properly, it can cause uneven cooling or too much compressor cycling. Replacing it helps restore correct temperature control and keeps the refrigerator working efficiently and safely.

Equipment Compatibility:
Typical refrigeration temperature control applications for Beverage Air Thermostat include commercial coolers, prep tables, and undercounter refrigeration systems. This Thermostat 502-302B is compatible with commercial equipment from leading brands such as Beverage Air, Victory, and more, where accurate temperature regulation and stable cooling cycles are required for proper equipment operation.

Brand Compatibility:
This thermostat replaces multiple part numbers used across compatible equipment models from brands such as Beverage Air, Ranco, Victory, and more. Complete cross-reference details are provided separately for identification and ordering purposes.

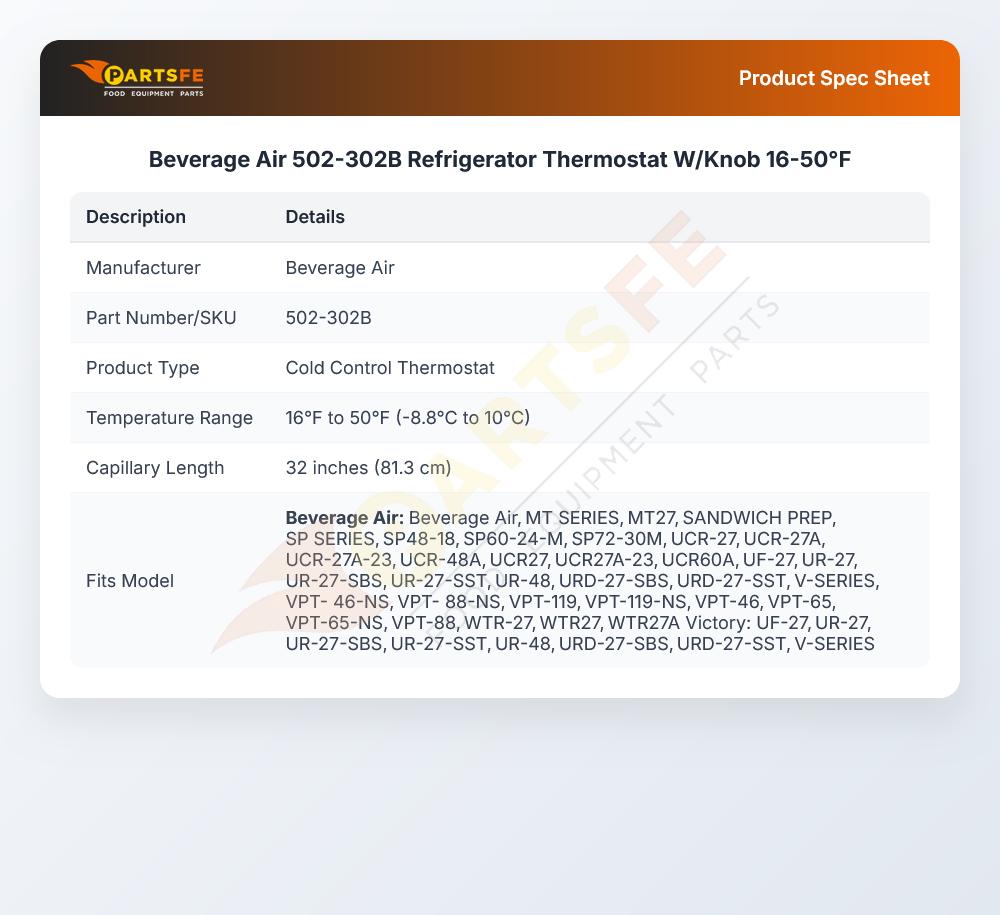

Product Specifications:
Product Type: Refrigerator Thermostat
Manufacturer: Beverage Air
SKU: 502-302B
Temperature Range: 16°F to 50°F
Sensor Type: Capillary tube sensing system
Mounting Type: Shaft-mounted control with knob
Application: Temperature control in commercial refrigeration units

Key Features:

• Helps keep refrigeration temperature steady and consistent
• 16–50°F range allows easy temperature adjustment
• The capillary tube system gives accurate temperature sensing
• Shaft-mounted design ensures secure installation with knob control
• Restores proper cooling when replacing a faulty thermostat
• Works well in commercial refrigerators, prep tables, and storage units

"After installation, the unit now maintains a more balanced cooling cycle, reducing temperature fluctuations and improving overall refrigeration performance."

Step1: Turn off the power to the refrigerator to avoid electrical shock.

Step2: Remove the old thermostat by disconnecting wires and unscrewing mounting hardware.

Step3: Mount the new thermostat in the initial location using the screws provided.

Step4: Reconnect wires according to the initial wiring configuration.

Step5: Restore power and test temperature settings to ensure proper operation.

Step6: Adjust settings as needed and confirm the unit cycles correctly.

• What maintenance is required for the Beverage Air 502-302B Thermostat W/Knob?

  Check thermostat calibration against an accurate thermometer. Inspect knob and dial for smooth operation. Ensure electrical connections are tight and the sensing element is positioned correctly to maintain consistent refrigeration and accurate temperature control throughout the compartment.

• What are common issues with the Beverage Air 502-302B Thermostat W/Knob?

  • Temperature not reaching set point.
  • Knob or dial sticking.
  • Uneven cooling in compartments.
  • Thermostat failing to activate properly.

• What maintenance is required for the Beverage Air 502-302B Thermostat?

  Regularly inspect the refrigerator thermostat for dust and debris buildup, ensuring contacts remain clean and corrosion-free. Calibrate the settings periodically to maintain accurate temperature control. Always power off before servicing to avoid electrical hazards.

• What are common issues with the Beverage Air 502-302B Thermostat?

  • Inaccurate temperature readings.
  • Intermittent or failed electrical contacts.
  • Thermostat knob or sensor malfunction.
  • Intermittent power or control signal issues.
