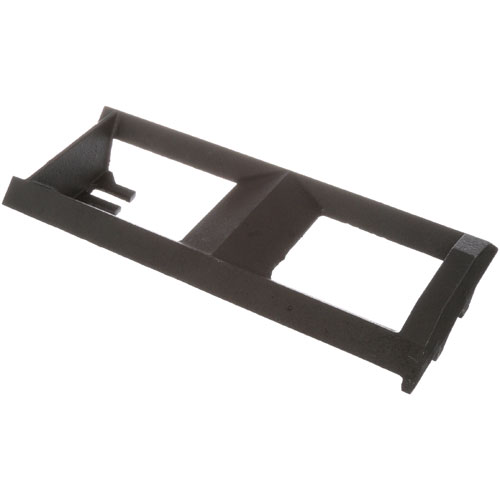

Star Mfg 2F-Z3036 Range Burner Deflector/Radiant Cast Iron 14-3/4" X 6-1/2"

Heat Distribution:
As the cast iron becomes evenly heated, it spreads thermal energy across a broader section of the cooking area. This reduces concentrated hot spots and supports more uniform heat exposure over the cooking surface. The component also helps maintain consistent thermal output as burners cycle during normal equipment operation.

Burner Heat Management:
Functions within the burner assembly as a heat-deflecting and radiant component. It interacts with the burner and surrounding range structure to influence the direction and distribution of generated heat. The cast-iron construction and specified dimensions identify the component configuration for compatible range assemblies.

Replacement Guidelines:
Replace the burner deflector/radiant when cracking, breakage, warping, or deterioration affects its intended positioning and heat distribution function. The part number 2F-Z3036 should be verified before replacement to ensure the correct component is selected. Replace the component when its condition affects burner coverage, heat distribution, or its intended function within the range assembly.

Common Failure Symptoms:

• Cracks or fractures in the cast iron radiant.
• Warping that prevents the radiant from sitting level above the burner.
• Uneven cooking with noticeable hot and cool spots across the cooking surface.
• Increased grease or food debris reaching the burner.
• Visible corrosion or deterioration affecting heat distribution.

Equipment Compatibility:
The Star Mfg 2F-Z3036 Charbroiler Burner Deflector/Radiant 14-3/4" X 6-1/2" Cast Iron is designed for commercial gas cooking equipment. Always verify your equipment model number and original part number before purchasing to ensure the correct fit.

Technical Specifications:
Product Name: Burner Deflector/Radiant
Part Number: 2F-Z3036
Brand: Star Mfg
Material: Cast Iron
Length: 14-3/4"
Width: 6-1/2"

Step1: Turn off the range and gas supply, and allow all components to cool fully.

Step2: Remove the cooking grate and lift out the old burner deflector.

Step3: Clean the burner area to remove grease and debris buildup.

Step4: Position the new deflector securely over the burner, aligning it properly.

Step5: Reinstall the cooking grate and ensure stable placement.

Step6: Restore gas supply and test the burner for proper flame and heat distribution.

• What maintenance is required for the Star Mfg 2F-Z3036 Burner Deflector/Radiant?

  Clean regularly to remove grease buildup and food debris to ensure proper heat distribution. Inspect for cracks, warping, or corrosion that affect performance. Season the cast iron periodically and handle with heat-resistant gloves for safety.

• What are common issues with the Star Mfg 2F-Z3036 Burner Deflector/Radiant?

  • Rust or corrosion on the cast iron surface.
  • Warping or cracking due to extreme heat.
  • Uneven heat distribution is affecting cooking.
  • Difficulty fitting or aligning the burner.

• What does the Star Mfg 2F-Z3036 burner deflector/radiant do?

  The 2F-Z3036 is positioned in the burner area of a compatible charbroiler as a burner deflector/radiant. It serves as a heat-management component between the burner and cooking area.

• Where is the 2F-Z3036 installed in a Star charbroiler?

  The burner deflector/radiant is installed over the burner area within the charbroiler. Its placement corresponds to the designated burner assembly rather than the cooking grate itself.

• Why is the Star 2F-Z3036 made of cast iron?

  Cast iron is the specified material for the 2F-Z3036 burner deflector/radiant. This material detail helps buyers distinguish the part from similarly shaped deflectors made from other materials.

• What do 14-3/4" × 6-1/2" indicate for the 2F-Z3036?

  These measurements identify the specified length and width of the burner deflector/radiant. Buyers can use them as identification details when matching the physical part to the required assembly.

• Which Star charbroilers use the 2F-Z3036 burner deflector?

  The 2F-Z3036 is listed for Star Broiler 6000, 6100, and CBB equipment, with specific models also listed by parts suppliers. Buyers should verify the exact equipment model before selecting the component.
