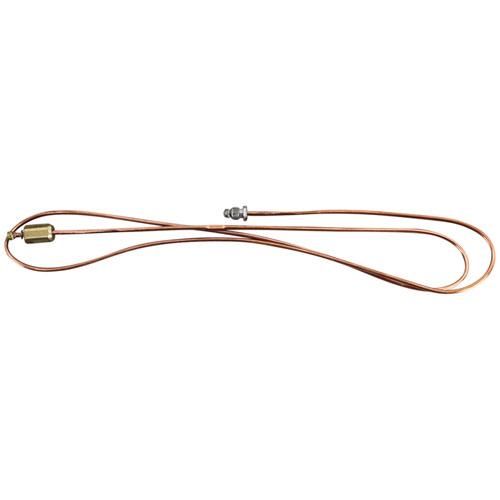

Imperial 36016 Thermocouple Extension End 48"

SKU: 36016 1-36016 Brand:
Imperial
Availability:
In Stock
(3)
$38.53 Price reduced from $78.64
Save $40.11
Have a Question? +1 (866) 863-0907

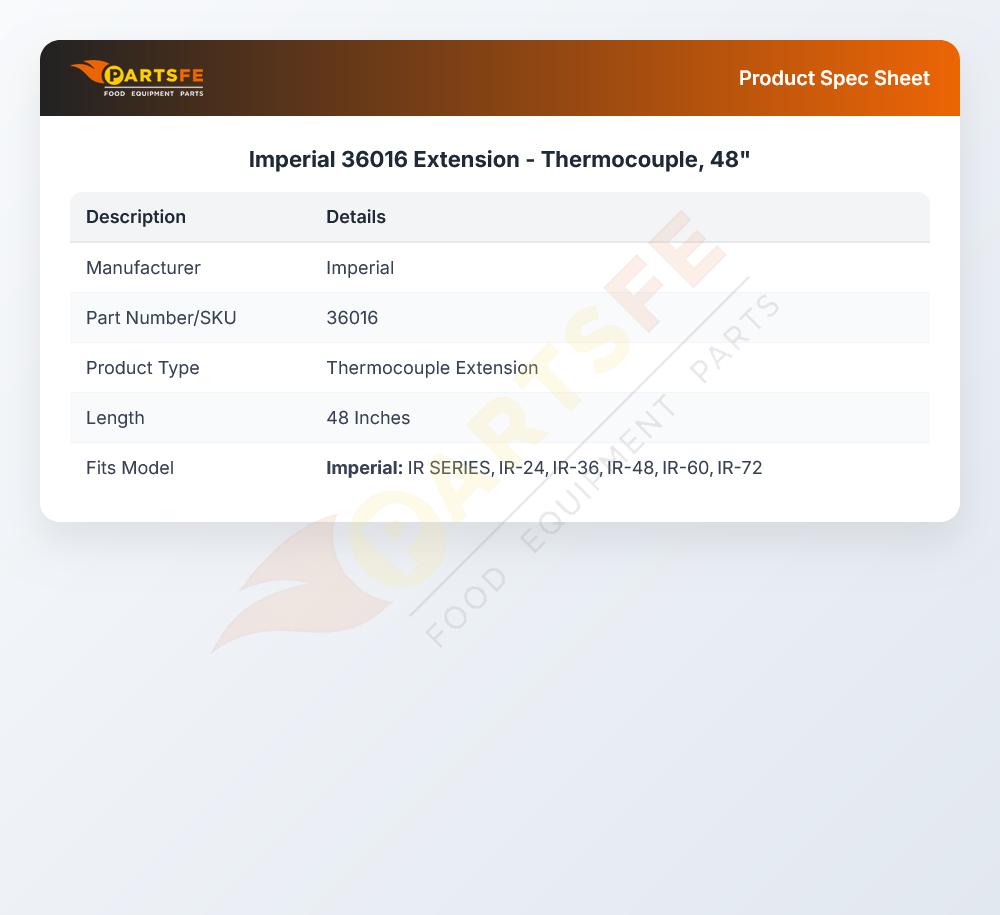

Specifications:

  • Extension,Thermocouple,
  • 48" Extension, For Thermocouple Ap# 51-1545 And Griddle
  • Control Gas Valve Ap# 46-1746.
  • For Imperial General Use.

Description

The Imperial 36016 Thermocouple Extension End 48" is operated by passing the voltage generated by temperature through the sensing tip to the gas control. The long distance enables the signal to pass continuously over the connection. The appliance has this extension that runs between the thermocouple and the control valve. It allows it to be installed flexibly in commercial cooking equipment. The fitting ends can be fitted onto ensure continuity in the temperature sensing circuit during the operation of the burner.

Dimensions:

  • Weight: 0.15 lbs
  • Length: 3.5 in
  • Height: 1 in
  • Width: 3.5 in

Step1: Turn off the gas supply to the appliance before starting installation.

Step2: Locate the thermocouple near the pilot assembly.

Step3: Disconnect it from the control valve carefully.

Step4: Remove the old thermocouple from its position.

Step5: Install the new one in the same location.

Step6: Reconnect to the control valve securely.

Step7: Restore the gas supply slowly.

Step8: Test pilot flame operation.

  • What maintenance is required for the Imperial 36016 Thermocouple Extension?

    Regularly inspect the thermocouple extension tip and wiring for corrosion, soot, or looseness. Ensure proper positioning of the pilot flame. Shut off gas and power before servicing.

  • What are common issues with the Imperial 36016 Thermocouple Extension?

    • Weak or inconsistent pilot flame signal causing burner shutdown.
    • The thermocouple is failing to generate adequate millivoltage for gas valve operation.
    • Loose or corroded connections leading to intermittent heating or ignition failure.
    • Probe misalignment outside the pilot flame causes inaccurate temperature sensing.

Customer Reviews

5 Based on 3 reviews
5 ★
3
4 ★
0
3 ★
0
2 ★
0
1 ★
0
3 reviews
  • Quick Replacement
    Jacob —

    Works flawlessly with existing thermocouple system.

  • Very Satisfied
    Rebecca Amsellem —

    Reliable connection, works great for my setup

  • Easy to Use
    Benjamin —

    This thermocouple works perfectly.This length is perfect for my needs, providing great reach and accuracy. It's a reliable product that I trust my equipment.
