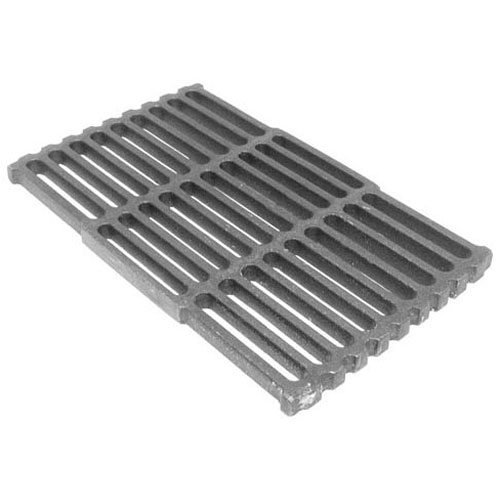

Star Mfg 2F-Z3077 Grill Cast Iron Bottom Grate 17-1/16" X 10-1/2", 4 Cross Bars, 11 Ribs

Lava Rock Support:
Provides structural support for the lava rocks while allowing heat from the burner assembly to pass through the rock layer toward the cooking grate. The rack keeps the rocks elevated and distributed across the designated heating area, helping maintain consistent positioning during repeated cooking cycles.

Heat Distribution:
Maintains the lava rock layer at the intended height and location above the burners. This positioning allows the heated rocks to act as an intermediate heat-distribution surface between the burner assembly and cooking grate, supporting more consistent thermal exposure across the cooking area.

Replacement Guidelines:
Replace the Charbroiler Grate Lava Rack if it is cracked, broken, warped, deformed, severely worn, or no longer provides proper support for the cooking surface. The part number 2F-Z3077 and dimensions 17-1/16" × 10-1/2" should be verified before replacement to ensure the correct lava rack is selected. Replace the lava rack if deterioration affects stability, fit, heat distribution, or normal charbroiler operation.

Common Failure Symptoms:

• Bent or distorted rack frame.
• Cracked or damaged support sections.
• Corrosion or surface deterioration.
• Lava rocks shifting from their intended position.
• Uneven support across the heating area.
• Structural damage affecting rack placement.

Equipment Compatibility:
Verify that STAR part number 2F-Z3077 matches the equipment documentation before purchasing. Confirm the applicable charbroiler configuration, grate dimensions, and manufacturer parts information. The part is specified as a 17-1/16" × 10-1/2" lava grate rack for applicable Star charbroiler equipment.

Technical Specifications:
Brand: Star
Part Number: 2F-Z3077
Product Name: Grate Lava Rack
Appliance Type: Commercial Charbroiler

Step1: Turn off the appliance and allow it to cool completely.

Step2: Remove the existing grate using heat-resistant gloves.

Step3: Clean debris from the appliance support rails.

Step4: Position the new cast iron grate evenly on supports.

Step5: Ensure stable, level placement before use.

Step6: Preheat the appliance lightly to season the grate surface.

• Do lava rocks need to be cleaned, and if so, what is the best method for cleaning them?

  Lava rocks should be cleaned periodically to remove grease and debris. The best method is to brush them with a wire grill brush or use a grill cleaning solution while they are cold. Rinse them thoroughly before use.

• Do lava rocks require any special maintenance during the off-season or when the grill is not in use for an extended period?

  During the off-season, it's a good practice to remove and store the lava rocks in a dry place to prevent moisture buildup. Check them for cleanliness before reinstalling them for the grilling season.

• Do lava rocks affect the cooking time of different foods?

  Lava rocks may affect cooking times slightly due to their ability to retain and distribute heat. Adjustments may be necessary for certain recipes.

• What maintenance is required for the Star Mfg 2F-Z3077 Cast Iron Bottom Grate?

  Clean the cast iron grate after each use to prevent the buildup of grease and food residue. Season it with a light layer of cooking oil to prevent rusting. Inspect for cracks or warping regularly and avoid using harsh abrasives that could damage the surface.

• What are the common issues with the Star Mfg 2F-Z3077 Cast Iron Bottom Grate?

  • Rust formation if not properly seasoned or dried
  • Warping due to excessive heat or thermal shock
  • Cracking from heavy impact or dropping
  • Uneven cooking if bars are damaged or bent.

• Where is the Star 2F-Z3077 lava rack positioned?

  It is positioned between the burner assembly and the cooking grate to support the lava rock layer within the charbroiler.

• What does the lava rack support?

  It supports the lava rocks and keeps them elevated above the burner assembly in the intended heating arrangement.

• How does the rack contribute to heat distribution?

  By maintaining the lava rocks in their designated position, the rack helps preserve the intended path of heat from the burners through the rock layer toward the cooking grate.

• Can a bent lava rack affect charbroiler operation?

  Yes. A distorted rack may change lava rock positioning and can affect the intended relationship between the burners, rocks, and cooking grate.

• Does the Star 2F-Z3077 include lava rocks?

  No. The 2F-Z3077 includes the support rack lava rocks, and the cooking grate is a separate component unless specifically supplied as part of another assembly.
