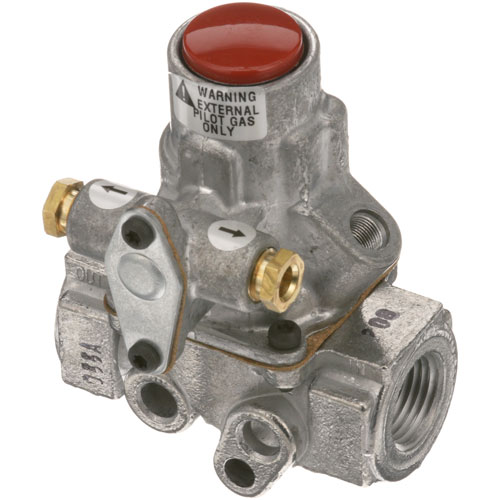

Johnson Controls H15CQ-3 Oven Gas Safety Valve 1/2" FPT 3-1/8" WIDE 1/4" In/out Pilot CCT

SKU: H15CQ-3 1-H15CQ-3 Brand:
Johnson Controls
Availability:
In Stock
(0)
$294.70 Price reduced from $564.56
Save $269.86
Have a Question? +1 (866) 863-0907

Specifications:

  • Gas Safety Valve,
  • 1/2" Fpt, 1/4" In/Out Pilot Cct Fittings, 3-1/8" Wide,
  • 322,000 Btu, Baso # H15Cq-3
  • Southbend Model Convection Oven 400 After 4-19-02.
  • ***For Nieco Use Ap# 8009340***

Description

The Johnson Controls H15CQ-3 Gas Safety Valve functions as safety component of ovens to maintain secure gas flow during operational periods. The valve incorporates 1/2" FPT gas inlet outlet and 1/4" pilot connections to deliver dependable gas supply control. The valve automatically cuts off gas supply when the flame dies out thus preventing dangerous gas leaks and it supports gas flow up to 322,000 BTU. This valve provides strong construction that enhances kitchen safety so it becomes essential for improve and residential cooking areas. The valve operates with different gas types which provides flexible utility in food preparation environments.

Dimensions:

  • Weight: 0.9 lbs
  • Length: 4 in
  • Height: 2.7 in
  • Width: 3 in

SOUTHBEND:

1180866 SOU1180866

Step1: Turn off gas supply and disconnect power completely before starting.

Step2: Remove old valve, disconnect gas lines and pilot tubing.

Step3: Apply approved thread sealant to fittings, install new valve securely.

Step4: Reconnect gas inlet/outlet and pilot lines, tighten properly.

Step5: Restore gas supply and check for leaks using soap solution.

Step6: Reconnect power and test ignition and flame safety shutoff.

Step7: Ensure proper ventilation and never test with open flame.

  • What maintenance is required for the Johnson Controls H15CQ-3 Gas Safety Valve?

    Inspect valve connections and pilot tubing regularly for leaks and corrosion. Clean external surfaces and ensure proper gas flow calibration. Verify safe shutoff operation periodically to maintain accurate oven safety performance.

  • What are common issues with the Johnson Controls H15CQ-3 Gas Safety Valve?

    • Pilot failure or weak ignition due to clogged or misaligned pilot orifice
    • Gas leakage at fittings or valve body causing unsafe operation
    • Inconsistent temperature control from faulty internal thermostat mechanism
    • Pilot CCT electrical or sensing issues preventing proper shutdown response
