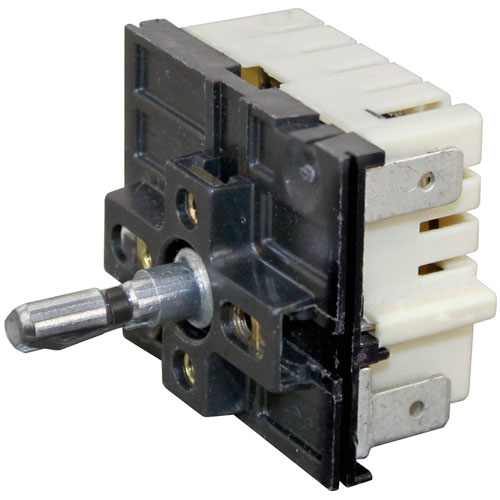

Star Mfg 2E-Z21560 Infinite Switch 15A 240V

SKU: 2E-Z21560 1-2E-Z21560 Brand:
Star Mfg
Availability:
In Stock
(0)
$26.56 Price reduced from $34.49
Save $7.93
Have a Question? +1 (866) 863-0907

Specifications:

  • 240V/15A )~
  • ( Infinite ), Terminal( 5~
  • 1/4" Tab~
  • L1,L2(Line),P(Pilot),H1,H2(Load) )~
  • Contacts( N.O. )'
  • (Rotary )( 1-10 )Shaft(1/4"Od~
  • 3/4" Lg~
  • .187 Flat Up )
  • "Wells" Dial # 22-1073 Off-Lo-2-8-Hi Flat Up.
  • Gen Use Black Knob # 22-1349, 2" Dia,
  • Off-Lo-2-6-Hi, Universal Mount, W/ 5 Inserts.
  • Delfield Warmer Dfw-1, Series: 8300 & Were Applicable
  • Wells Knob Off-Lo-2-3-4-5-6-7-8-Hi # 22-1073 (Flat Up)
  • Wells Broiler B40, B44, B50, B446, B405, B506.
  • Hotplate H(006,33,65,70,115) H336, H636, H706.
  • Warmer Ss-206, Ss-276. Ss10-4, Ss10-8, Ss10-10Ul,Ss-300,
  • Ss-400, Ss-500. Tmp, Mod-400Dm, 400D.
  • Warmer Hw/Smp, Smp, Smpt, Ss4, Ss8,

Description

The Star Mfg 2E-Z21560 Infinite Switch 15A 240V is used to turn on and off the heating components of an electric range by varying the amount of electricity flowing depending on the desired position. It controls temperature in a continuous manner that does not have set steps but gradual changes. This switch is fitted behind the range control panel and it is directly connected to the heating element circuits. It is a component of electrical system of the appliance and regulates the amount of power to be supplied to the burners.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.25 in
  • Height: 1.75 in
  • Width: 1.75 in

BLOOMFIELD:

2E-30562

STAR MFG:

2E-30562 2E30562 50562 55531 WS-50562

STERO:

WEL2E-30562 WEL2E30562

U-LINE:

5502-307 5502-370 INF240-1018

Step1: Disconnect electrical power before servicing.

Step2: Open the control panel to locate the switch.

Step3: Remove wires from the old switch terminals.

Step4: Unscrew and remove the faulty switch.

Step5: Install the new switch and secure it.

Step6: Reconnect wiring, restore power, and test heat control levels.

  • What maintenance is required for the Star Mfg 2E-Z21560 Infinite Switch?

    Inspect the switch regularly for signs of wear, loose connections, or burn marks. Keep terminals clean and free of dust. Proper maintenance ensures reliable operation and prevents overheating. Always disconnect power before handling or cleaning.

  • What are common issues with the Star Mfg 2E-Z21560 Infinite Switch?

    • Intermittent or unresponsive switching.
    • Burning smell or overheating.
    • Loose or corroded terminals.
    • Inconsistent power output to the appliance.
