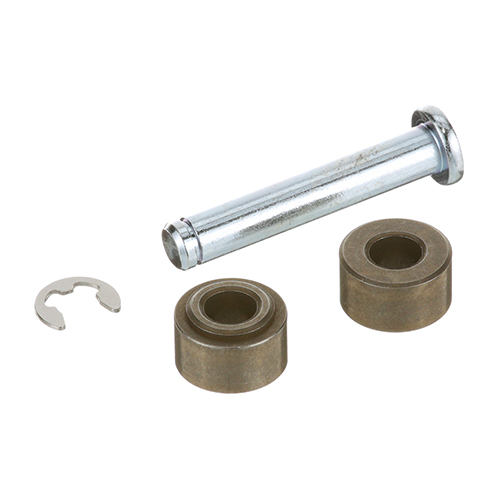

Eliason K0136 Roller Hinge Assembly

SKU: K0136 1-K0136 Brand:
Eliason
Availability:
In Stock
(1)
$62.91
Have a Question? +1 (866) 863-0907

Specifications:

  • Roller Hinge Assembly Used On Eliason® Double-Action Swing Doors
  • Includes: (2)Rollers,(1)Flat Head Axle,(1)"E"Clip
  • Inside Diameter: 3/8" Rollers, 10 Mm
  • Length: 2-1/4" Pin, 57 Mm Pin
  • (4)Lock Nuts,(4)Flathead Bolts,(2)Expansion Bolts,(2)Bolts
  • Outside Diameter: 3/8" Pin, 7/8" Rollers, 10 Mm Pin, 22 Mm Rollers
  • Weight: 0.17 Lb
  • Width: 1/2" Rollers, 13 Mm Rollers

Description

The Eliason K0136 Roller Hinge-Assembly is specifically used for double-action swing doors ensuring they operate smoothly and last longer. The assembly consists of premium rollers and a flat head axle alongside an "E" clip which enables smooth door operation in restaurants and improve buildings. This product stands out because of its durable build quality with 3/8" inside roller diameter and 2-1/4" pin length which provides excellent performance in demanding applications. The assembly includes lock nuts together with flathead bolts and expansion bolts and additional bolts to provide users with a complete installation package.

Dimensions:

  • Weight: 0.17 lbs
  • Length: 4 in
  • Height: 0.25 in
  • Width: 4 in

Step1: Ensure the door is stable before starting the installation process.

Step2: Carefully remove the existing hinge assembly from both the door and frame using proper tools.

Step3: Thoroughly clean the mounting surfaces to ensure proper alignment and secure fitting.

Step4: Position the new roller hinge assembly accurately in place.

Step5: Secure it firmly using the original hardware or compatible fasteners.

Step6: Slowly open and close the door to verify smooth operation.

Step7: Make small adjustments if alignment is off.

  • What maintenance is required for the Eliason K0136 Roller Hinge Assembly?

    Regularly inspect the hinge for dirt, rust, or misalignment. Lubricate moving parts with a suitable grease to ensure smooth operation. Tighten any loose screws and check for wear. Proper maintenance prevents binding and ensures accurate performance.

  • What are the common issues with the Eliason K0136 Roller Hinge Assembly?

    • Hinge misalignment cauising binding or uneven movement.
    • Rust or corrosion on metal components.
    • Noise during operation or squeaking.
    • Damage to rollers leading to reduced smoothness.
