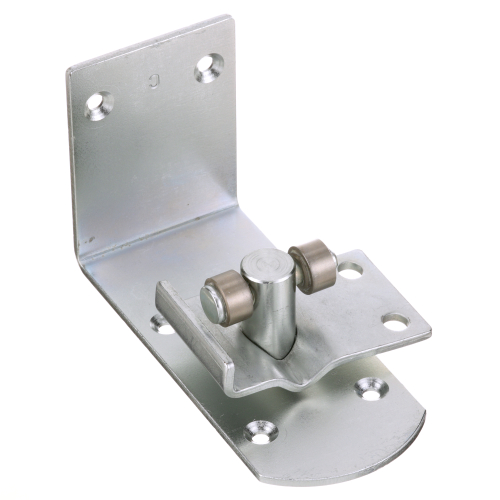

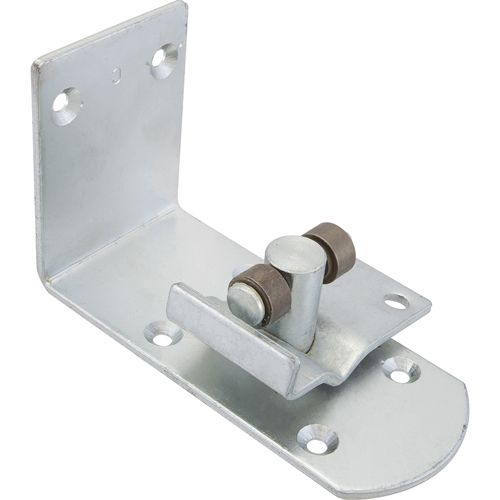

Eliason K0195 Hinge Upper Assembly 90° Bearing Plate

SKU: K0195 1-K0195 Brand:
Eliason
Availability:
In Stock
(1)
$116.48
Have a Question? +1 (866) 863-0907

Specifications:

  • Upper Hinge Assembly With 90° Bearing Plate Used On Eliason®
  • Double-Action Swing Doors
  • Height: 4", 102 Mm
  • Includes: (2)Rollers,(1)Flat Head Axle,(1)"E"Clip,
  • Note: Used On Eliason Double-Action Swing-Doors
  • (2)Bolts,(2)Nuts,(10)Machine Screws,
  • (6)1-1/2"Wood Screws,(4)2-1/2"Wood Screws
  • Length: 6-3/4", 171 Mm
  • Note: Used On Eliason Double-Action Swing-Doors
  • Weight: 2.818 Lb
  • Width: 3", 76 Mm

Description

The Eliason K0195 Upper Hinge Assembly with a Bearing Plate serves as a specialized component intended for double-action swing doors. This durable assembly grows to 4 inches high while incorporating a special 90° bearing plate which distinguishes it from regular hinge assemblies. The package includes two rollers and a flat head axle together with an "E" clip and different screws and bolts which provide all necessary components for complete door installation. The hinge assembly measures 6-3/4 inches in length and 3 inches in width as it has been designed for reliable performance.

Dimensions:

  • Weight: 2.82 lbs
  • Length: 6 in
  • Height: 3 in
  • Width: 4 in

ELIASON:

140-88Z-2 140-88Z2

Step1: Ensure the door is supported before removing hinges.

Step2: Unscrew and remove the old hinge assembly.

Step3: Align the new hinge with the mounting holes.

Step4: Secure it using suitable fasteners.

Step5: Check door alignment and movement.

Step6: Tighten all screws firmly.

  • What maintenance is required for the Eliason K0195 Hinge Upper Assembly?

    Regularly inspect the hinge for dirt, corrosion, and loose fasteners. Lubricate moving parts with proper grease to ensure smooth operation. Tighten screws as needed, and avoid excessive force when opening or closing to prevent misalignment or damage.

  • What are common issues with the Eliason K0195 Hinge Upper Assembly?

    • Stiff or squeaky movement.
    • Misalignment of connected parts.
    • Loosening or stripped screws.

Customer Reviews

5 Based on 1 reviews
5 ★
1
4 ★
0
3 ★
0
2 ★
0
1 ★
0
1 review
  • Works Efficiently
    Carl —

    Fits perfectly restores door alignment and function.
