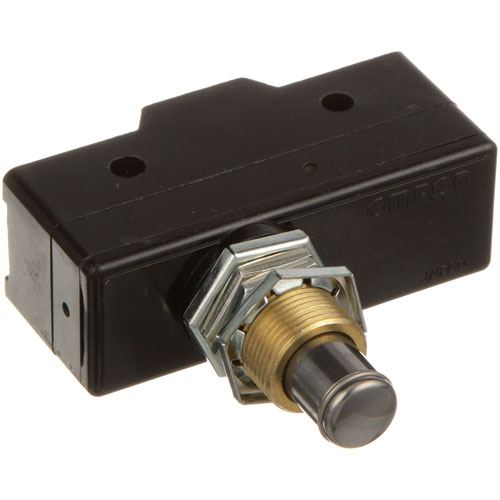

Bakers Pride M1102A Door Switch Micro Push Button On/Off

SKU: M1102A 1-M1102A Brand:
Bakers Pride
Availability:
In Stock
(0)
$96.80 Price reduced from $246.71
Save $149.91
Have a Question? +1 (866) 863-0907

Specifications:

  • Micro Push Button Momentary On/Off Switch, Spdt
  • 20 Amp, 125/250/480 Volt, Mount Hole Ctrs 1"
  • Bakers Pride
  • Duke E-101, 59-1Ev
  • Pitco Fryer Electric Units With Suffix "C", "Cs", "S",
  • E7, E7B, E12, E14, E14B, E14X, E18, E18B, E24, E36,

Description

The Bakers Pride M1102A Door Switch Micro Push Button On/Off Mounting Centers that operate the circuit of an oven or other appliance to the extent. The connection between on and off positions is broken or completed by pressing the button to signal the control system to cease or permit power flow. This is installed at the point of the appliance where it touches the frame, which corresponds with the latch, such that the door opens and closes to assist in controlling operation.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2 in
  • Height: 0.6 in
  • Width: 2 in

APW WYOTT:

1300240

BAKERS PRIDE:

1300240 AS-1300240 BKPM1102X M1102X

DUKE:

153114

GARLAND:

227152

HOBART:

00-087711-068-1 00-087711-153-1 00-87711-153-1 00-87711-68-1 087711-68-1 87711-153-1 87711-68-1

PITCO:

P5047170

Step1: Turn off electrical power before starting and check zero voltage with a tester.

Step2: Remove the access panel and locate the mounting area for the old door switch assembly.

Step3: Secure the switch to the center mount position using proper hardware.

Step4: Connect new door switch wiring terminals according to the schematic, ensuring tight connections.

Step5: Reassemble panel, restore power, and test door operation for safe functionality.

  • What maintenance is required for the Bakers Pride M1102A Door Switch?

    Regularly inspect the switch for wear, loose connections, or debris buildup that may affect performance. Clean gently using a dry cloth and ensure proper alignment during operation. Maintenance helps ensure accurate activation and prevents electrical faults. Always disconnect power before servicing for safety.

  • What are common issues with the Bakers Pride M1102A Door Switch?

    • Switch failing to activate or deactivate properly.
    • Intermittent electrical connection or signal loss.
    • Physical wear causing sticking or unresponsive button.
    • Misalignment leading to inconsistent operation.
