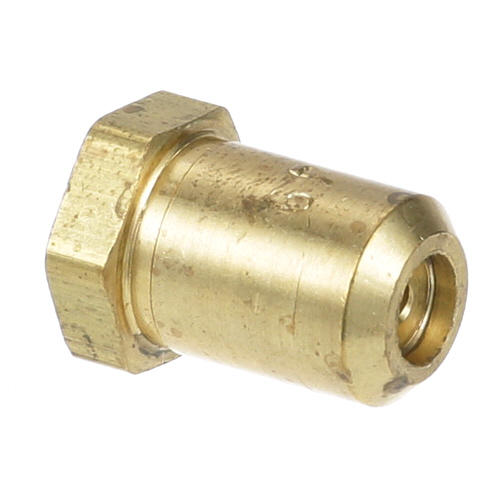

Magikitch'N 2908-0032300 Griddle Burner Orifice #49 Natural Gas

SKU: 2908-0032300 1-2908-0032300 Brand:
Magikitch'N
Availability:
In Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Burner Orifice #49
  • Imperial
  • Broiler Icb-4827, Icb-6027.
  • Series: Gd (Glowing Devil).
  • Range Series: Ihr.

Description

Magikitch'N 2908-0032300 Burner Orifice 49 is a gas metering element that is used in natural gas commercial griddles. It works by regulating the supply of natural gas through supply valve to the burner and the size of the flame and amount of heat produced during cooking. This opening is fitted directly into the burner of the compatible griddles, and this is to ensure a correct fit with the appliance. The gas delivery system is essential to aid in maintaining uniform combustion and even heat distribution.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

APW WYOTT:

2066849 AS-2066849

ATOSA:

301040013

BAKERS PRIDE:

2066849 BKPR3043A BKPR3043X R3043A R3043X

GARLAND:

1020849 223242-49 G7266-49F GL1020849 GL223242-49 GLM8-49 M8-49

GLASS MAID:

8-49

HOBART:

00-719951-00049 19951-49 719951-00049 719951-49

IMPERIAL:

1700-49 2064 IMP1700-49 IMP2064

JADE RANGE:

46-213 460-213-000 460213000 4621300000

MAGIKITCH'N:

29-08-00323A MK29-08-00323A MK2908-0032300

SOUTHBEND:

1006449 1008749 SOU1006449 SOU1008749

STAR MFG:

2A-0032300

VULCAN HART:

00-719951-00049 19951-49 719951-00049 719951-49 VH00-719951-00049 VH19951-49 VH719951-00049 VH719951-49

Step1: Turn off gas supply and disconnect electrical power before servicing.

Step2: Remove griddle front panel and locate burner orifice assembly.

Step3: Unscrew existing orifice carefully using correct tool.

Step4: Install new orifice securely.

Step5: Tighten to manufacturer specification without over-torquing threads.

Step6: Reassemble burner components and reinstall all panels properly.

Step7: Restore gas supply, check for leaks using soapy water solution, and ensure safe operation.

  • What maintenance is required for the Magikitch'N 2908-0032300 Burner Orifice?

    Regularly inspect the griddle orifice for grease buildup, carbon deposits, or clogging that can affect gas flow and flame quality. Clean gently using proper non-abrasive tools and ensure proper alignment during reinstallation. regular checks improve efficiency and better combustion operation.

  • What are common issues with the Magikitch'N 2908-0032300 Burner Orifice?

    • Uneven gas flow affecting flame stability.
    • Wear or corrosion of orifice opening.
    • Improper fit causing leakage or reduced performance.
    • Partial blockage from carbon buildup leading to inconsistent burner output.
