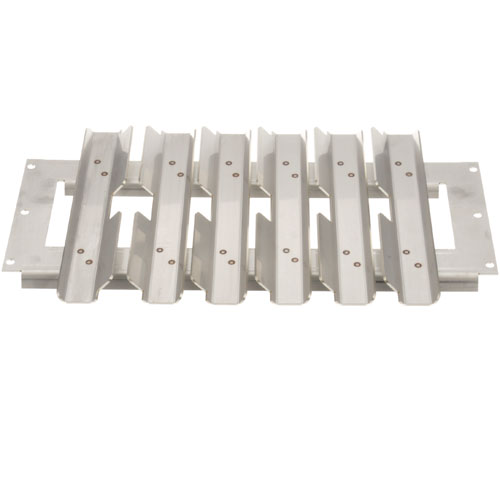

Southbend 1183676 Range Radiant Charbroiler Assembly 19" x 10.5" 7.5 lbs

SKU: 1183676 1-1183676 Brand:
Southbend
Availability:
In Stock
(2)
$452.24 Price reduced from $866.36
Save $414.12
Have a Question? +1 (866) 863-0907

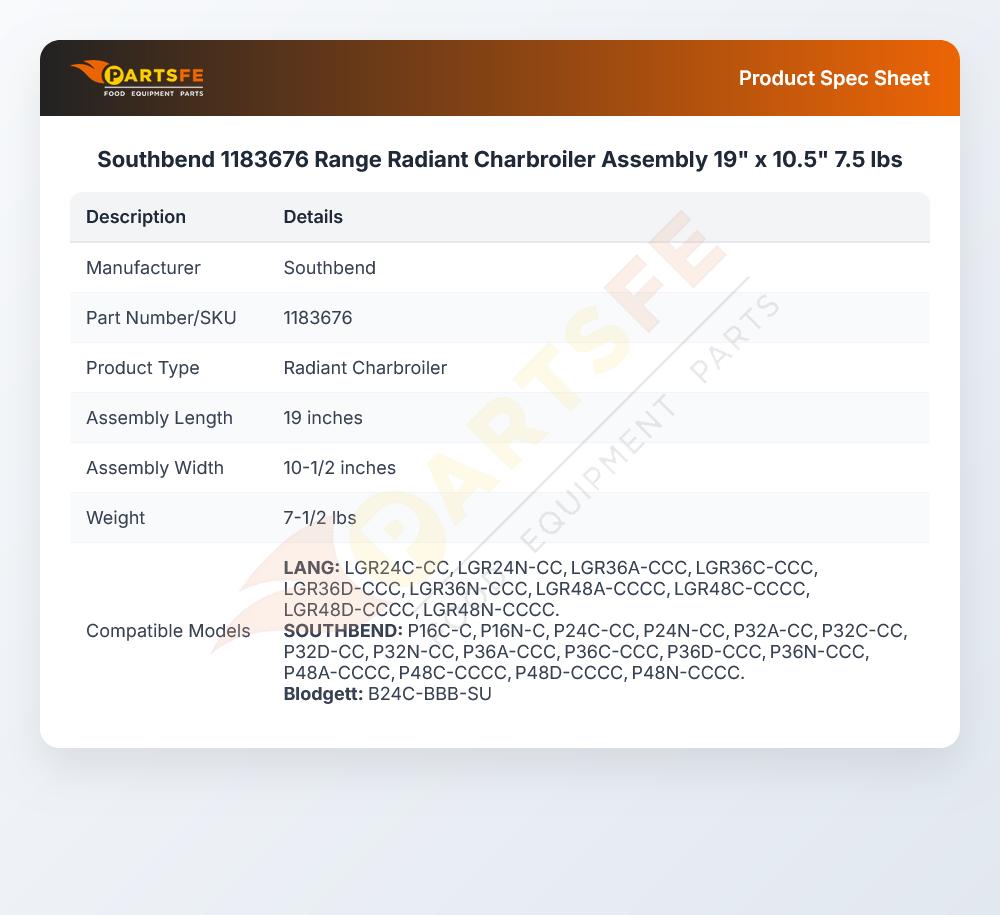

Specifications:

  • Charbroiler Radiant Assembly W/A
  • Length- 19"
  • Width- 10 1/2"
  • 7-1/2Lbs
  • Lang Lgr24C-Cc, Lgr24N-Cc, Lgr36A-Ccc, Lgr36C-Ccc,
  • Lgr36D-Ccc, Lgr36N-Ccc, Lgr48A-Cccc, Lgr48C-Cccc,
  • Lgr48D-Cccc, Lgr48N-Cccc,
  • Southbend P16C-C, P16N-C, P24C-Cc, P24N-Cc,
  • P32A-Cc, P32C-Cc, P32D-Cc, P32N-Cc, P36A-Ccc, P36C-Ccc,
  • P36D-Ccc, P36N-Ccc, P48A-Cccc, P48C-Cccc, P48D-Cccc,
  • P48N-Cccc

Description

The Southbend 1183676 Radiant Weldment Assembly is an essential element in commercial gas ranges that is necessary to maintain even heat distribution under the cooking surface. It assists in the uniformity of cooking performance through the even distribution of heat throughout the burner to help in the maintenance of uniform temperature during cooking. This assembly is an essential part of the restaurant ranges and is a vital component of the heating system that helps in effective transfer of energy and better performance in the kitchen conditions.

Dimensions:

  • Weight: 7.62 lbs
  • Length: 19.13 in
  • Height: 1.63 in
  • Width: 10.63 in

BLODGETT:

BL1183676

SOUTHBEND:

SOU1183676

Step1: Turn off the gas supply and power to the charbroiler.

Step2: Remove the old radiant assembly and clean the burner tray.

Step3: Inspect the burners and gas lines for corrosion or damage.

Step4: Place the new radiant assembly into the correct slots over the burners.

Step5: Ensure alignment with all brackets and support rails.

Step6: Secure any mounting clips or screws to hold the assembly in place.

Step7: Reconnect the gas and test for leaks.

Step8: Ignite the charbroiler and verify even heating across the surface.

  • What maintenance is required for the Southbend 1183676 Radiant Assembly?

    Regularly inspect the charbroiler radiant assembly for grease buildup and debris. Clean gently to prevent flare-ups and ensure even heat distribution. Check for warping or cracks that could affect performance. Always cool the unit before handling for safety.

  • What are the common issues with the Southbend 1183676 Radiant Assembly?

    • Uneven heating across the cooking surface.
    • Cracks or warping of the radiant panels.
    • Excessive flare-ups from grease accumulation.
    • Reduced heat output due to clogged or worn elements.
