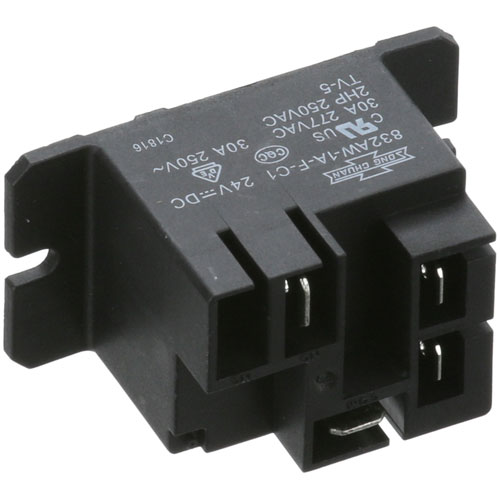

Hatco R02.01.050.00 Warmer Relay SPST 30A 24 VDC

SKU: R02.01.050.00 1-R02.01.050.00 Brand:
Hatco
Availability:
In Stock
(0)
$19.87 Price reduced from $33.00
Save $13.13
Have a Question? +1 (866) 863-0907

Specifications:

  • Relay,
  • [ 1 Pole] [30 Amps] [24V ] [ 1/4"M & 3/16"M Terminals]
  • [1.75"Ctr Holes ] [Sky ] Comes With 2, 3/16" Female
  • Terminals
  • Hatco Grcw-1, Series Grsds ( Electronic Models )

Description

The Hatco R02.01.050.00 Warmer Relay is an electrical switch with a single pole and a single throw with a current rating of 30 amps and 24 VDC which is used to control power flow in commercial warming systems. It is an automatic control connection between lower voltage signals and higher current heating circuits, which allows the coordinated operation of warming elements. The relay is installed in the electrical system of the appliance to assist in the control of the load switching and the time when the appliance should be active. In foodservice applications.

Dimensions:

  • Weight: 0.1 lbs
  • Length: 2 in
  • Height: 1.25 in
  • Width: 1.25 in

HATCO:

02-01-050 02-01-050-00 02.01.050 02.01.050.00 2-01-050 2.01.050 HT02-01-050 HT02.01.050 HT2-01-050 HT2.01.050 HTR02-01-050 HTR02-01-050-00 HTR02.01.050 HTR02.01.050.00 R02-01-050 R02-01-050-00 R02.01.050

Step1: Switch off power and check isolation before handling electrical components.

Step2: Mount old relay using center holes on stable panel ensuring secure fit.

Step3: Connect new relay terminals per wiring diagram matching load requirements.

Step4: Tighten connections, inspect wiring, then restore power and test relay operation safely.

Step5: Ensure proper grounding and avoid touching terminals during energized testing.

Step6: Confirm relay rating compatibility with circuit load to secure from overheating or failure.

  • What maintenance is required for the Hatco R02.01.050.00 Relay?

    Regularly inspect the relay terminals for signs of carbon buildup or oxidation to ensure stable electrical conductivity. Verify that the mounting screws remain tight to prevent vibrations from loosening connections. Always disconnect power before cleaning dust from the housing using compressed air.

  • What are common issues with the Hatco R02.01.050.00 Relay?

    • Pitting or welding of internal contact points.
    • Audible buzzing or humming during operation.
    • Failure to connect due to a burnt-out electromagnetic coil.
    • Intermittent power delivery caused by loose or corroded spade terminals.
