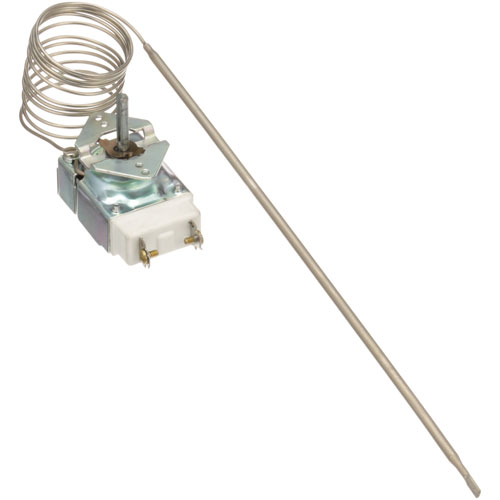

Southbend 1191727 Range RX Electric Thermostat Millivolt Max Temp 575°F 60" CAP

Electrical Control:
Regulates the heating system by controlling the electrical signal that coordinates burner operation within compatible commercial ranges. The thermostat responds to temperature conditions and manages the millivolt control circuit to maintain the selected heat level during operation. By linking temperature sensing with heating control, it supports consistent thermal regulation and allows the appliance to adjust heat output according to cooking requirements. The component provides a control point between the user-selected temperature setting and the range’s heating system.

Heating System Control:
Within the range's gas heating system, the thermostat works with the burner and gas control components to regulate heat output during cooking. By responding to temperature changes, it coordinates burner operation to maintain the selected cooking temperature throughout the operating cycle, supporting consistent heating conditions within the cooking equipment.

Replacement Guidelines:
Replace the Southbend 1191727 Range Thermostat 550°F Millivolt RX when wear, physical damage, deterioration, or functional failure affects its ability to regulate temperature according to the equipment's intended control requirements. Inspect the thermostat and related control connections for conditions that could affect temperature control operation. Replace the component when it can no longer maintain its intended function within the range of the temperature control system.

Common Failure Symptoms:

• Inaccurate temperature regulation
• Slow response to temperature changes
• Frequent overheating or underheating
• Inconsistent cooking performance
• Unstable burner cycling

Equipment Compatibility:
The Southbend 1191727 Range Thermostat 550°F Millivolt RX is used with Southbend commercial gas ranges requiring this thermostat configuration. Verify the equipment model number, part number, thermostat type, and temperature rating before purchase to confirm the correct application.

Technical Specifications:
Brand: Southbend
Part Number: 1191727
Product Name: RX-Millivolt Thermostat
Equipment Type: Range
Maximum Temperature Rating: 550°F

Step1: Disconnect power and shut off gas supply if applicable.

Step2: Remove control panel access screws.

Step3: Disconnect wiring leads and capillary sensing bulb from the existing thermostat.

Step4: Mount the new thermostat and route the 60" capillary tube properly.

Step5: Reconnect wiring, secure the panel, and verify temperature regulation.

• How does the SouthBend Thermostat work?

  The 1191727 Thermostat senses the temperature inside the oven or range and activates or deactivates the heating elements or burners to maintain the desired temperature setting.

• Can I install the SouthBend range Thermostat myself, or do I need a technician?

  If you have experience with appliance repairs, you may be able to install the thermostat yourself. However, for safety and proper installation, it's recommended to seek the assistance of a qualified technician if needed.

• Is it normal for the oven Thermostat to wear out over time?

  Yes, like many mechanical components, thermostats can wear out over time due to regular use and temperature fluctuations. Proper care and maintenance can help extend the lifespan.

• What maintenance is required for the Southbend 1191727 RX Electric Thermostat?

  Regularly inspect wiring connections for looseness, corrosion, or heat damage, and tighten terminals as needed. Clean dust and grease buildup from the thermostat housing to prevent overheating and inaccurate temperature readings. Periodically verify calibration using an accurate thermometer to ensure consistent performance. Always disconnect power before servicing to prevent electrical shock.

• What are the common issues with the Southbend 1191727 Range RX Electric Thermostat?

  • Inaccurate temperature readings.
  • Range failing to reach set temperatures.
  • Thermostat cycling too frequently.
  • Erratic or inconsistent heating performance.

• What type of thermostat is the Southbend 1191727?

  The Southbend 1191727 is an RX-millivolt thermostat designed for temperature control applications in compatible commercial ranges.

• What is the maximum temperature rating of the Southbend 1191727 thermostat?

  The thermostat has a specified temperature rating of 550°F, which identifies its designated temperature-control range.

• How does a millivolt thermostat control a range's heating system?

  A millivolt thermostat responds to temperature changes and uses its control signal to regulate the connected heating system according to the selected temperature setting.

• Why is the temperature rating important when selecting a range thermostat?

  The thermostat's temperature rating should correspond with the operating requirements of the range to ensure the selected control is appropriate for the application.

• What specifications should be matched when selecting the 1191727 thermostat?

  The range model, RX-millivolt configuration, temperature rating, and manufacturer part number should be matched with the applicable equipment specifications.
