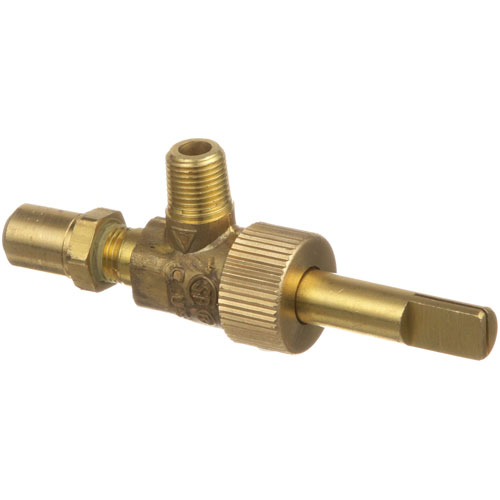

Rankin Delux RDLR-10 Charbroiler Top Burner Valve In-1/8" Out-3/8" NPT

SKU: RDLR-10 1-RDLR-10 Brand:
Rankin Delux
Availability:
Out of Stock
(0)
$23.62 Price reduced from $36.20
Save $12.58
Have a Question? +1 (866) 863-0907

Specifications:

  • ***For Vulcan Hart Use Ap# 8012180***
  • Gas In: 1/8" Npt~
  • Gas Out: 3/8-27. Off/On, #46 Hood Orifice
  • & Point, Adjustable, Brass
  • Not Push To Turn Stem: 1-3/16" Long~
  • D Stem 1/4". Knob
  • #22-1464 Or #22-1164 Depending On Model. Use #26-2937 To
  • Convert Valve To 3/8" Cct On Some Models.
  • Nat Orifice # 26-1117 Is #57, Nat Orifice # 26-1780 Is #56,
  • Lp Orifice # 26-1080 Is #72.
  • Anets Broiler Br34-3
  • Imperial Broiler Series: Eba, Gd, Icb, Icma, Irb, Isb, Msq,
  • Iab(E)(R)(S). Grill Series: Ihr, Imga.
  • Range Series: Icra, Ihpa, Ihr, Ir, Ispa.
  • Roaster Series: Ipr, Ipra.

Description

The Rankin Delux RDLR-10 Charbroiler Top Burner Valve NPT In-1/8" Out-3/8" is intended to control flow with a top-mounted burner connection with an inlet of 1/8" NPT and an outlet of 3/8". It is fitted in parallel with the existing piping to offer a regulated control on the supplied medium. The valve is included in the flow control network of the system, and it can be adjusted manually with the alignment of the fittings. It has the purpose of maintaining a steady and regulated supply via the burner supply path.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 0.88 in
  • Height: 3.5 in
  • Width: 1.88 in

ANETS:

P8900-27

BAKERS PRIDE:

R3032A R3032X

GARLAND:

1086588 1087697 227006 9005596 9005597 9005599 G4859-47A G4859-57F

MARSAL AND SONS:

V-107

MONTAGUE:

#34B 01005-7 01006-5 02403-1 1005-7 1006-5 14608-0 2403-1 34A 34B R35

PITCO:

P8900-27

RANDELL:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11

RANKIN DELUX:

DRB-11 GB-07 RB-11 RDGM-08 RDHP-08 RDHP-8 RDHP-E-C-08 SUHP-13 SUHP-E-C-13 TB-11 TB-11-A TB-11A TB-3-11 TB3-11

Step1: Turn off the gas supply and ensure the burner is cool.

Step2: Remove the existing burner valve by loosening the mounting screws and disconnecting the gas line.

Step3: Position the new valve in place and secure it with screws.

Step4: Reconnect the gas line, ensuring a tight, leak-free connection.

Step5: Test for leaks with a soapy water solution before lighting the burner.

Step6: Turn on the gas and verify proper flame operation.

  • What maintenance is required for the Rankin Delux RDLR-10 Top Burner Valve?

    Regularly inspect the valve for leaks and corrosion. Clean any debris or grease from the valve body. Operate the valve occasionally to ensure smooth movement. Always shut off the gas supply before performing any maintenance for safety.

  • What are common issues with the Rankin Delux RDLR-10 Top Burner Valve?

    • Difficulty turning the valve handle.
    • Gas leaks at the connection points.
    • Inconsistent flame or flow.
    • Worn or damaged internal seals.
