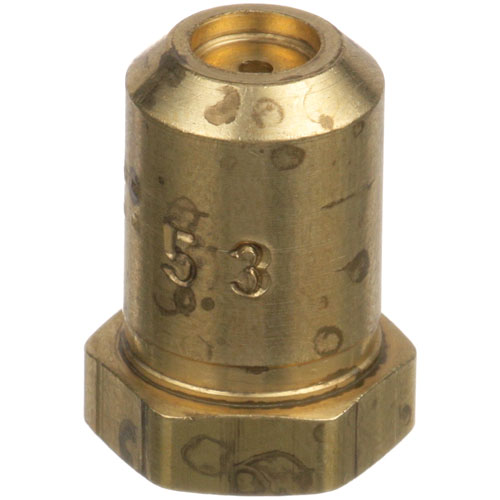

Imperial 1700-53 Burner Orifice #53 3/8"-27 x 1/2"

SKU: 1700-53 1-1700-53 Brand:
Imperial
Availability:
Out of Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #53
  • Jade Broiler Jcbh
  • Grill Jggt, Jggtb, Jgm, Jgt, Jgtb
  • Star Broiler
  • Tec (Thermal Engineering Corp)

Description

The Imperial 1700-53 Burner Orifice meters natural gas flow to a burner by limiting fuel flow through a small aperture in the fuel flow and assists features in that application. The gas passes through the calibrated hole, which determines the volume that passes at a certain pressure to assemble the combustion hood properly to cooking equipment where the 3/8 in.-27 inlet and 1/2 in. Height requirements are compatible. This hood outlet is compatible with systems to be used in that particular #53 configuration in commercial ranges and ovens.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11053 A29007

DUKE:

213602 3602 3602-2

GARLAND:

1037753 223242-14 223242-53 M8-53

GLASS MAID:

8-53

HOBART:

00-418051-00053 00-719951-00053 19951-53 418051-00053 418051-53 719951-00053 719951-53

IMPERIAL:

2076

JADE RANGE:

460-217-000 460217000 4621700000

ROYAL RANGE:

1122-53

SOUTHBEND:

1006453 1008753

STAR MFG:

2A-39335 2A-Y5357 2J-Y7136 3663 59335 G2-3663 WS-59335 Y5357 Y7136

TEC:

SPOP Y-SPOP

VULCAN HART:

00-418051-00053 00-719951-00053 00-851800-00915 19951-53 418051-00053 418051-53 719951-00053 719951-53 851800-00915 851800-915

WITTCO:

00-851800-00915 851800-915 Y-SPOP

Step1: Turn off gas supply and ensure appliance is cool and disconnected from power.

Step2: Remove hood assembly or burner access panel carefully using proper screwdriver.

Step3: Unscrew existing orifice and note positioning for reference.

Step4: Install brass orifice, tighten securely without over-torquing.

Step5: Reassemble components, restore gas, and test for leaks using soapy water.

Step6: If leak detected, shut off gas and consult qualified technician immediately.

  • What maintenance is required for the Imperial 1700-53 Hood Orifice?

    Inspect the orifice regularly for grease buildup, clogs, or corrosion that may affect gas flow. Clean gently using a soft brush or approved solvent to maintain accurate performance. Ensure tight fittings to prevent gas leaks and maintain safe, efficient burner operation.

  • What are common issues with the Imperial 1700-53 Hood Orifice?

    • Clogging from grease or debris restricting gas flow.
    • Uneven flame or weak burner performance.
    • Thread damage causing improper sealing.
    • Corrosion leading to reduced efficiency and inconsistent ignition.
