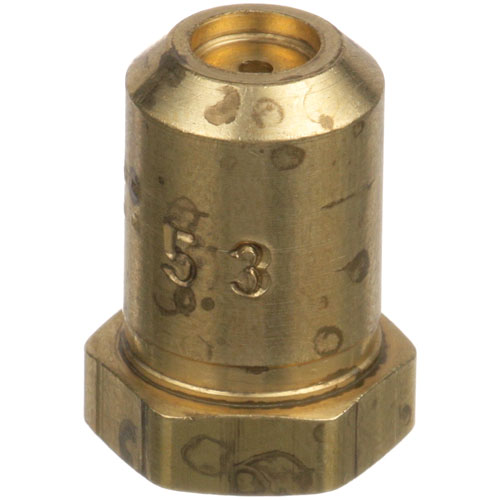

Garland M8-53 Charbroiler Orifice Hood Brass #53

SKU: M8-53 1-M8-53 Brand:
Garland
Availability:
Out of Stock
(0)
$6.08
Have a Question? +1 (866) 863-0907

Specifications:

  • Brass Hood Orifice,
  • 3/8"-27 X 1/2" High X #53
  • Jade Broiler Jcbh
  • Grill Jggt, Jggtb, Jgm, Jgt, Jgtb
  • Star Broiler
  • Tec (Thermal Engineering Corp)

Description

The Garland M8-53 Charbroiler Orifice Hood Brass #53 regulates the amount of gas that passes to the burners to form the proper flame. It works by forcing gas into the burner ports via a hole of a specific size to ensure steady combustion. This orifice hood is fitted in the burner assembly between the supply line of gas and the burners. Its positioning provides even delivery of gas and flame distribution that allows normal cooking operation and a proper ignition and heat production throughout the surface.

Dimensions:

  • Weight: 0.01 lbs
  • Length: 0.75 in
  • Height: 0.75 in
  • Width: 0.25 in

AMERICAN RANGE:

11053 A29007

DUKE:

213602 3602 3602-2

GARLAND:

1037753 223242-14 223242-53

GLASS MAID:

8-53

HOBART:

00-418051-00053 00-719951-00053 19951-53 418051-00053 418051-53 719951-00053 719951-53

IMPERIAL:

1700-53 2076

JADE RANGE:

460-217-000 460217000 4621700000

ROYAL RANGE:

1122-53

SOUTHBEND:

1006453 1008753

STAR MFG:

2A-39335 2A-Y5357 2J-Y7136 3663 59335 G2-3663 WS-59335 Y5357 Y7136

TEC:

SPOP Y-SPOP

VULCAN HART:

00-418051-00053 00-719951-00053 00-851800-00915 19951-53 418051-00053 418051-53 719951-00053 719951-53 851800-00915 851800-915

WITTCO:

00-851800-00915 851800-915 Y-SPOP

Step1: Turn off gas supply and allow appliance to cool.

Step2: Remove burner assembly and access existing orifice carefully.

Step3: Unscrew old orifice using proper tool.

Step4: Inspect threads for debris or damage thoroughly.

Step5: Install new orifice securely, hand-tight then snug.

Step6: Reassemble burner and components, ensure proper seating.

Step7: Restore gas supply and test for leaks, check flame, use leak detector solution.

  • What maintenance is required for the Garland M8-53 Hood Orifice?

    Clean the orifice periodically to prevent grease and debris buildup that can affect gas flow. Inspect for corrosion or blockage and ensure secure fitting in the hood assembly. Use proper tools and shut off gas before servicing for safety.

  • What are common issues with the Garland M8-53 Hood Orifice?

    • Uneven or reduced gas flow output.
    • Stripped or damaged mounting threads.
    • Inconsistent flame pattern during operation.
    • Partial blockage from debris in orifice.
