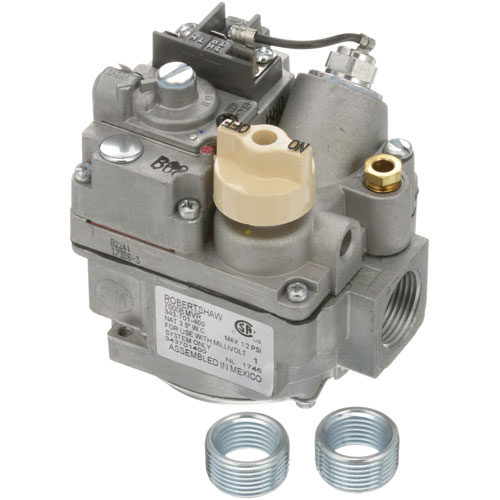

Dean 8070306 Natural Gas Safety Control 3.5" WC Model 7000 BMVR

SKU: 8070306 1-8070306 Brand:
Dean
Availability:
In Stock
(0)
$180.59 Price reduced from $278.25
Save $97.66
Have a Question? +1 (866) 863-0907

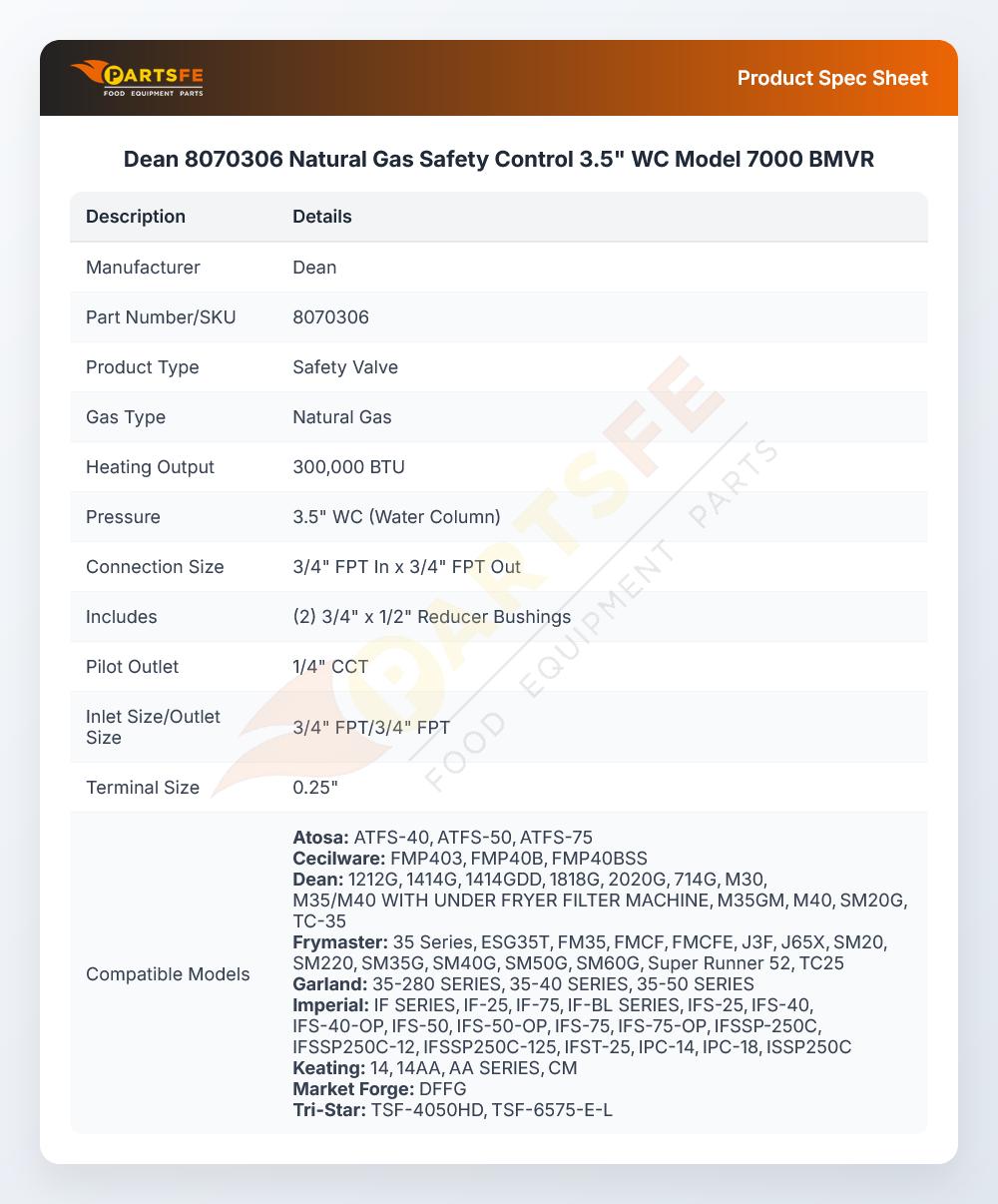

Specifications:

  • Nat Gas Safety, 3.5" Wc, Model 7000 Bmvr, Mfg#700-506
  • 3/4" Fpt In X 3/4" Fpt Out, Includes 3/4" X 1/2" Reducer
  • Bushings, Millivolt Actuator, Requires Wire Lead
  • Thermopile, 36" # 51-1121 Or 60" # 51-1257
  • 1/4" Cct Pilot Out, 300,000 Btu
  • For Lp Conversion Use # 51-1470
  • Bakers Pride Oven Following Models Made After 10/94:
  • Y600, Y800, Ds-805, Gs-805, D-125, 101, 151, 201
  • 251, 301, 351, 3151, 401, 451, 4151, Fc-(516,616,816)
  • Cecilware Fryer Fmp-30, Fmp-40, Fmp-65, Fmp-403, Fms-30,
  • Fms-40, Fms-65.
  • Frymaster Fryer Models Made Before Feb. 1993: Gf14, Gf40,
  • J1C, Jcfx, J3Fc, J65X, Mj15, Mj35, Mj235, Mjcf.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Fryer Gas Counter Units And Miraclean Griddles.

Description

The Dean 8070306 Safety Control Model 7000 BMVR is a better and more efficient part for cooking equipment as it controls the flow of gas. It uses a millivolt actuator and needs a thermopile for power therefore, it is suitable for high-temperature applications. The unit is designed to work with fryers, ovens, and grills from Bakers Pride, Frymaster, and Cecilware among others. As to the advantages – one could list such as increased safety for the car, simplicity to retrofit and universality towards different models.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.7 in
  • Height: 3.5 in
  • Width: 4.5 in

ATOSA:

301030003

BLOOMFIELD:

DD-62193

CECILWARE:

GML347A GML347F L347A L347F

DEAN:

1896 807-0115 807-0306 807-2428 8070115 8072428 810-0014 8100014

ENTR?E:

400042-1RS

FRYMASTER:

1896 807-0115 807-0306 807-2428 807-3645 8070114 8070115 8072428 8073645 810-0014 8100014 FM1896 FM807-0115 FM807-0306 FM807-2428 FM8070114 FM8070115 FM8070306 FM8072428 FM810-0014 FM8100014

GARLAND:

02511-1 1292799 2511 2511-1 F807-2425 F807-2428 F826-1580 GL1292799 GL2511

HOBART:

00-348392-00001 00-353271-00001 110841-22 110841-23 348392-1 353271-1

IMPERIAL:

1173 1173-RS 1173RS IMP1173

JADE RANGE:

8800000038

KEATING:

2552 H00300H KEA2552 KEAH00300H P06066L

MARKET FORGE:

93-0190

SOUTHBEND:

1055997 1055999

STAR MFG:

62193 DD-62193

TRI-STAR:

300188 400042 AS-300188 TRS300188

U-LINE:

343-701-400 343-811-400 700-506

VULCAN HART:

110841-22 110841-23

Step1: Turn off gas supply and electrical power to the unit before servicing.

Step2: Allow appliance to cool completely to avoid burns.

Step3: Remove front or side access panel to reach gas control area.

Step4: Label and disconnect inlet, outlet, and pilot tubing carefully.

Step5: Remove existing safety control valve from mounting position.

Step6: Install new valve, ensuring correct gas flow direction.

Step7: Reconnect all gas lines securely and check for leaks with approved solution.

Step8: Restore gas and power, then test ignition and check better shutdown function.

  • What maintenance is required for the Dean 8070306 Natural Gas Safety Control?

    Inspect all gas line connections regularly for leaks and secure fittings. Clean surrounding components to prevent grease or dust interference. Verify proper pressure settings and stable flame operation during service checks. Ensure electrical and sensing terminals remain tight and corrosion-free for better operation.

  • What are common issues with the Dean 8070306 Natural Gas Safety Control?

    • Failure to open gas valve due to faulty control signal.
    • Inconsistent gas pressure causing weak or unstable flame.
    • Delayed ignition or ignition lockout conditions.
    • Wiring faults or poor electrical connection at terminals.
