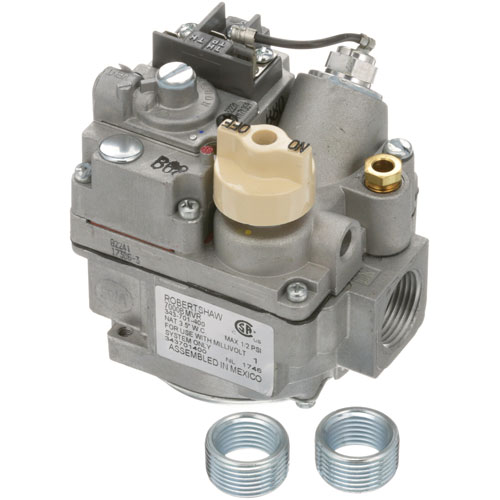

Tri-Star 300188 Fryer Natural Gas Safety Control Valve 7000 BMVR 3.5" WC

SKU: 300188 1-300188 Brand:
Tri-Star
Availability:
In Stock
(1)
$180.59 Price reduced from $278.25
Save $97.66
Have a Question? +1 (866) 863-0907

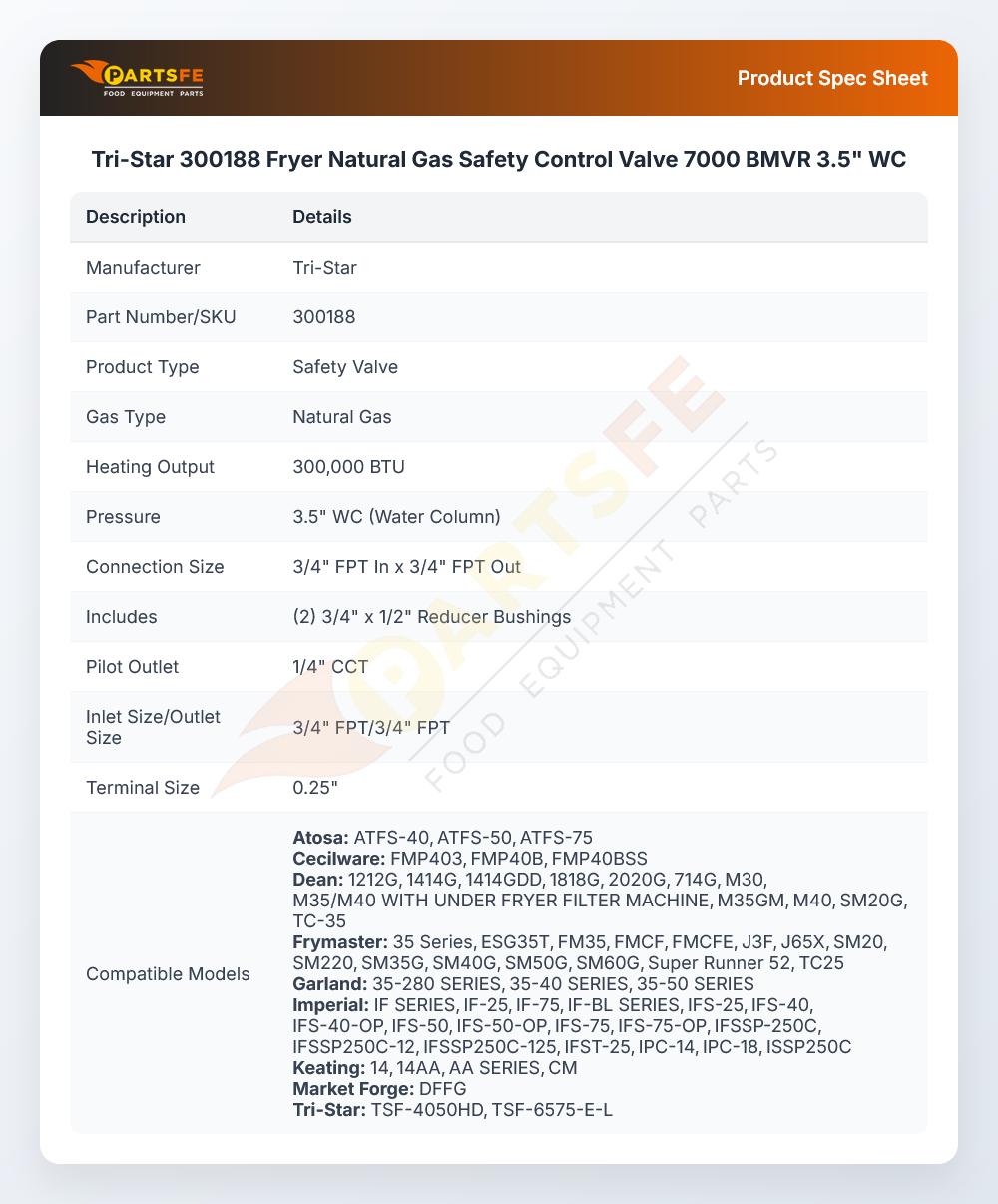

Specifications:

  • Nat Gas Safety, 3.5" Wc, Model 7000 Bmvr, Mfg#700-506
  • 3/4" Fpt In X 3/4" Fpt Out, Includes 3/4" X 1/2" Reducer
  • Bushings, Millivolt Actuator, Requires Wire Lead
  • Thermopile, 36" # 51-1121 Or 60" # 51-1257
  • 1/4" Cct Pilot Out, 300,000 Btu
  • For Lp Conversion Use # 51-1470
  • Bakers Pride Oven Following Models Made After 10/94:
  • Y600, Y800, Ds-805, Gs-805, D-125, 101, 151, 201
  • 251, 301, 351, 3151, 401, 451, 4151, Fc-(516,616,816)
  • Cecilware Fryer Fmp-30, Fmp-40, Fmp-65, Fmp-403, Fms-30,
  • Fms-40, Fms-65.
  • Frymaster Fryer Models Made Before Feb. 1993: Gf14, Gf40,
  • J1C, Jcfx, J3Fc, J65X, Mj15, Mj35, Mj235, Mjcf.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Fryer Gas Counter Units And Miraclean Griddles.

Description

The Tri-Star 300188 Combination Valve Natural Gas regulates the flow of gas to the fryer by opening and closing based on the heating requirements of the unit to maintain a steady stream of ignition and flame in the unit. It works by combining the safety shutoff with the gas modulation in a single assembly which enables the fryer to maintain a constant cooking performance. This element is installed in the gas line of the fryer, which is usually placed close to the burner system where it is connected to the gas supply and internal control systems to aid in the control of heat during the cooking process.

Dimensions:

  • Weight: 2.4 lbs
  • Length: 5.7 in
  • Height: 3.5 in
  • Width: 4.5 in

ATOSA:

301030003

BLOOMFIELD:

DD-62193

CECILWARE:

GML347A GML347F L347A L347F

DEAN:

1896 807-0115 807-0306 807-2428 8070115 8070306 8072428 810-0014 8100014

ENTR?E:

400042-1RS

FRYMASTER:

1896 807-0115 807-0306 807-2428 807-3645 8070114 8070115 8070306 8072428 8073645 810-0014 8100014 FM1896 FM807-0115 FM807-0306 FM807-2428 FM8070114 FM8070115 FM8070306 FM8072428 FM810-0014 FM8100014

GARLAND:

02511-1 1292799 2511 2511-1 F807-2425 F807-2428 F826-1580 GL1292799 GL2511

HOBART:

00-348392-00001 00-353271-00001 110841-22 110841-23 348392-1 353271-1

IMPERIAL:

1173 1173-RS 1173RS IMP1173

JADE RANGE:

8800000038

KEATING:

2552 H00300H KEA2552 KEAH00300H P06066L

MARKET FORGE:

93-0190

SOUTHBEND:

1055997 1055999

STAR MFG:

62193 DD-62193

TRI-STAR:

400042 AS-300188 TRS300188

U-LINE:

343-701-400 343-811-400 700-506

VULCAN HART:

110841-22 110841-23

Step1: Turn off gas fryer supply and disconnect power before servicing unit; ensure ventilation; verify compatibility.

Step2: Remove old valve and clean mounting area; inspect fittings and gas line.

Step3: Install new valve, align inlet/outlet, tighten fittings with proper sealant tape using approved method.

Step4: Reconnect lines, restore gas slowly, check for leaks with soap solution.

Step5: Test ignition and burner operation; ensure safety shutoff works and shutdown safety test.

  • What maintenance is required for the Tri-Star 300188 Safety Control Valve?

    Inspect the gas safety control regularly for secure wiring, clean electrical terminals, and proper millivolt response from the thermopile. Check for gas leaks and ensure stable pressure during operation. Keep the valve free from grease buildup and verify accurate ignition and shutoff during service checks.

  • What are common issues with the Tri-Star 300188 Safety Control Valve?

    • Gas leakage due to worn seals.
    • Inconsistent flame or burner shutdown due to valve blockage.
    • Failure to open or close due to thermocouple malfunction.
    • Reduced gas pressure affecting heating performance.
