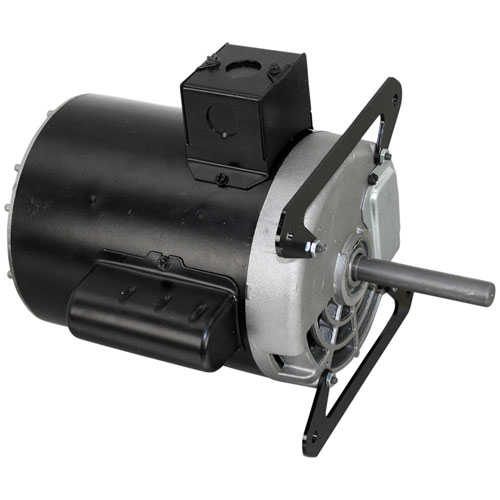

Garland 9001901 Oven 2-Speed Blower Motor 0.75/0.21HP, 1725/1140 RPM, 115V/1PH

SKU: 9001901 1-9001901 Brand:
Garland
Availability:
Out of Stock
(0)
$200.45 Price reduced from $308.86
Save $108.41
Have a Question? +1 (866) 863-0907

Specifications:

  • Blower Motor, 2 Speed.
  • [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
  • [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
  • [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
  • Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
  • 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
  • Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
  • Spaced On 4" Centers Bracket To Bracket And On Each Bracket
  • They Are Spaced 4.097"
  • Garland Blower Wheel # 26-1464
  • Us Range Blower Wheel # 26-1464
  • Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
  • Tim Ortons Spritzer,
  • Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
  • Sumg-100

Description

The Garland 9001901 is a commercial oven blower motor that boasts of a 2-speed high performance. It has a power rating of 0.75 HP at high speed and 0.21 HP at low speed; it rotates at 1725 RPM and 1140 RPM, respectively, to provide proper airflow to maintain heat distribution. This motor is a 115V single phase which makes it to be used in most commercial kitchen conditions. The ability to operate at two speeds enables it to be adjusted to meet the airflow needed for cooking hence reducing energy consumption. designed for efficiency, this provides stability in the operation of the oven, in that cooking results are uniform.

Dimensions:

  • Weight: 25 lbs
  • Length: 15.25 in
  • Height: 10.5 in
  • Width: 10.5 in

GARLAND:

1686701 1686711 GL1686701 GL1686711

Step1: Disconnect power and gas supply, and ensure the oven is completely cool before servicing.

Step2: Remove the access panel carefully and label existing wiring connections for reassembly.

Step3: Detach old blower motor, support it properly, and remove mounting screws.

Step4: Install new motor, align shaft correctly, and secure all mounting points firmly.

Step5: Reconnect wiring per manufacturer diagram, ensuring all terminals are tight and insulated.

Step6: Replace panel, restore power, and test both speeds for proper operation and safety.
