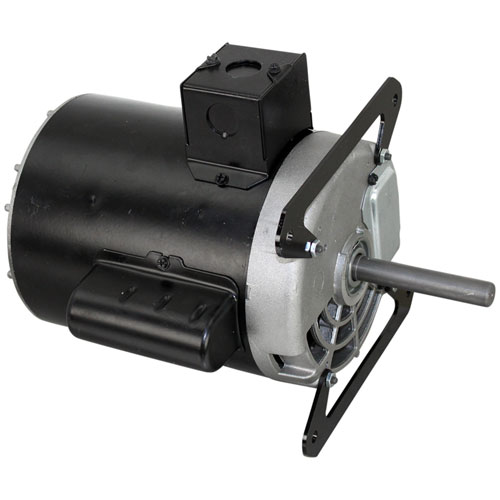

Garland GL1686701 Blower Motor 0.75/0.21HP 1725/1140 RPM 115V 1PH

SKU: GL1686701 1-GL1686701 Brand:
Garland
Availability:
Out of Stock
(0)
$200.45 Price reduced from $308.86
Save $108.41
Have a Question? +1 (866) 863-0907

Specifications:

  • Blower Motor, 2 Speed.
  • [ 115V, ] [ .75/.21 Hp, ] [1Ph ] [1725/1140 RPM ]
  • [9.8/4.2 Amp ] [Cw Rotation ] [ 3-3/4" X 5/8" Shaft ]
  • [ Y56Y Frame ] [ 6-3/16" X 6-3/16" Mtg. Brkt. ]
  • Qty 4 Outside 5/16" Holes, On Each Bracket 2 Holes Are
  • 6-3/16" On Centers And From Bracket To Bracket Also 6-3/16"
  • Centers. Inside Bracket Mount Studs Are 3/16" Studs And Are
  • Spaced On 4" Centers Bracket To Bracket And On Each Bracket
  • They Are Spaced 4.097"
  • Garland Blower Wheel # 26-1464
  • Us Range Blower Wheel # 26-1464
  • Garland Oven Mcogs, Mcogd, Icog, Ecog, Icog,.
  • Tim Ortons Spritzer,
  • Us Range Oven Models Sge100, Sgm100, P1-G-10D, Cg100, Sdg,
  • Sumg-100

Description

The Garland GL1686701 Blower Motor 0.75/0.21HP is to be used to operate the air circulation in controlled heating systems. It works by transforming 115-volt single phase electrical input into rotational output at 1725 or 1140 RPM, and provides selectable horsepower performance to provide controlled airflow. This motor is mounted in the housing of the blower, where a steady flow of air is needed to maintain a temperature balance. It is an essential component of the air circulation system and aids in maintaining a stable thermal distribution of commercial cooking.

Dimensions:

  • Weight: 25 lbs
  • Length: 15.25 in
  • Height: 10.5 in
  • Width: 10.5 in

GARLAND:

1686701 1686711 9001901 GL1686711

Step1: Turn off power to the appliance.

Step2: Remove the old blower motor carefully.

Step3: Disconnect wiring and mounting hardware.

Step4: Inspect the mounting bracket and fan housing for wear.

Step5: Install the new blower motor in the correct orientation.

Step6: Secure with bolts or screws provided.

Step7: Reconnect wiring according to the diagram.

Step8: Power on and test blower operation for proper airflow.

  • What maintenance is required for the Garland GL1686701 Blower Motor?

    Regularly inspect the blower motor for dust and debris buildup and clean with compressed air. Lubricate bearings if specified by the manufacturer to maintain smooth rotation. Check mountings and electrical connections for tightness. Always disconnect power before servicing for safety.

  • What are the common issues with the Garland GL1686701 Blower Motor?

    • Reduced airflow due to debris buildup.
    • Unusual noise from worn bearings.
    • Motor overheating or failure.
    • Loose electrical connections are causing intermittent operation.
