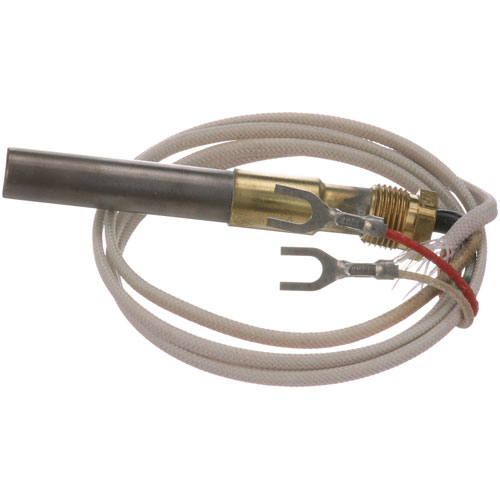

Cecilware F178AL Thermopile 2 Lead 36" 250-750 MV

SKU: F178AL 1-F178AL Brand:
Cecilware
Availability:
In Stock
(0)
$64.48 Price reduced from $83.75
Save $19.27
Have a Question? +1 (866) 863-0907

Specifications:

  • 36" 2 Lead, Thermopile, 250-750 Mv, Robertshaw 1950-53B
  • Cecilware Fryer Fmp 30, 40B, 403, 65, Fms 30, 54
  • Cleveland Boiler Gas Steam Generators: W/O Probes (100,000
  • Btu - 2 Burners~
  • 150,000 - 3 Burners)~
  • W/3 Probes (160,000
  • Btu - 3 Burners~
  • 200,000 - 4 Burners
  • Groen Braising Pan Hfp/2. Series: Chfp, Nhfp.
  • Imperial Fryer Series: If, Ihr, Ir.
  • Keating Griddle Model 48Bfld
  • Southbend Fryer Gfs, 4Fr-45
  • Star Fryer 404A, 615Fa, 630Fa
  • Tri-Star Fryer Tsf-3540, Tsf-4050, Tsf-6575
  • Vulcan Fryer: Tk, Rs, Ghf (Old Hf) Gr, Grd, Grc,Grs,
  • Wells Grill, Gas
  • Wolf Fryer Wtf-35,

Description

The Cecilware F178AL Thermopile transforms the heat of a flame into electrical voltage, and it generates a current that measures the temperature to use in gas control systems. It has two leads and produces 250-750 millivolts that facilitate the work of burners and safety. This thermopile has a length of 36" and is intended to be installed in ovens, burners, or other gas appliances so that it can reach the source of heat and then be connected to the control circuitry. Its long shape fits well in assemblies without disrupting other components around.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.5 in
  • Height: 1 in
  • Width: 2.5 in

ADCRAFT:

21424

AMERICAN RANGE:

A11102 AMRA11102

ATOSA:

301030006

BLOOMFIELD:

2T-42195

CECILWARE:

F178A F178F GMF178A GMF178F

CLEVELAND:

20410 CLE20410

DEAN:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171

ENTR?E:

400043-1

FRYMASTER:

810-0159 810-0617-1 810-06171 8100159 8100617-1 81006171 FM810-0159 FM810-0617-1 FM810-06171 FM8100159 FM8100617-1 FM81006171

GARLAND:

2525-1 G02525-1 GL1292900 GL2525-1 GLG02525-1

GRINDMASTER:

F178A

GROEN:

1126 GR001126 GR1126

HOBART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 21027-1 410839-00004 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158

IMPERIAL:

1096 IMP1096

JADE RANGE:

8800000012

KEATING:

022770 22567 22770 4186 KEA22567 KEA22770 KEA4186

LANG:

2J-80504-04 80504-04

MARKET FORGE:

93-0189

SOUTHBEND:

1182154 SOU1182154

STAR MFG:

2J-1182154 2J-80504-04 2J-Y9270 2T-42195 2T42195 42195 4T42195 62195 WS-62195 Y9270

STERO:

STA2T-42195 STA2T42195 STA42195

TRI-STAR:

300157 AS-300157 TRS300157

U-LINE:

1950-532 1950-53B

VULCAN HART:

00-410839-00004 00-497301-00001 00-721027-00001 00-722158 110839-4 21027-1 33681-12 410839-00004 410839-2 410839-4 497301-00001 497301-1 721027-00001 721027-1 722158 VH110839-4 VH33681-12 VH410839-2 VH410839-4 VH497301-1

Step1: Turn off gas and electrical supply and allow appliance to cool completely.

Step2: Remove access panel and disconnect old thermopile leads carefully noting polarity.

Step3: Position new thermopile in pilot assembly ensuring proper flame exposure.

Step4: Secure mounting bracket and reconnect leads to control valve terminals.

Step5: Restore power, light pilot, and verify millivolt output and stable flame.

Step6: Check for gas leaks and ensure safe operation before closing panel.

  • What maintenance is required for the Cecilware F178AL Thermopile Lead?

    Periodically check the thermopile leads and connections for secure contact and signs of corrosion. Keep the sensor tip clean from soot or debris to ensure accurate millivolt output. Verify proper flame contact during operation. Always turn off gas supply before inspecting or adjusting the thermopile.

  • What are common issues with the Cecilware F178AL Thermopile Lead?

    • Low millivolt output due to weak pilot flame.
    • Loose or corroded lead connections.
    • Soot buildup interfering with sensor performance.
    • Failure to hold pilot light despite flame presence.
