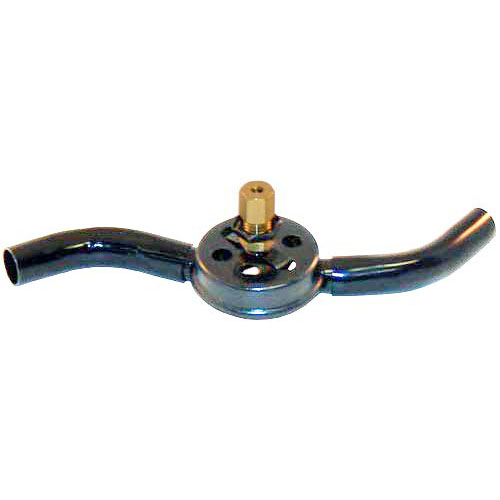

Garland GLG7804-280 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve

SKU: GLG7804-280 1-GLG7804-280 Brand:
Garland
Availability:
Out of Stock
(1)
$19.68 Price reduced from $35.14
Save $15.46
Have a Question? +1 (866) 863-0907

Specifications:

  • Open Top Pilot Assembly,
  • 6" Long, 1/8" Cct Nut & Sleeve, 3" Flash Tube Only,
  • 1-5/8" Dia Ring,
  • For 1/8" X 3 Ft. Copper Clad Steel Tubing Order #26-2271
  • For 1/8" Aluminum Tubing Order #26-1417 (1/8" X 50 Ft. Roll)
  • Garland Series 40/50, G280, H280, P280, G30A, After 1968

Description

The Garland GLG7804-280 Faucet Open Top Pilot Assembly 6 in 1/8 in CCT Nut and Sleeve is a pilot ignition part that is used in cooking equipment. It offers a regulated flame to activate the main burner by the gas to a stable pilot jet that is close to the burner area and is attached to the gas supply line with a fitting. It also helps in the system to have a accurate ignition and safe operation by having a steady pilot flame that allows the main burners to be lit when requested by the appliance control system.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 4 in
  • Height: 1.25 in
  • Width: 3 in

GARLAND:

-1084500 -1084501 -1084502 -1084503 -CKG7804-44 -G7804-280 -G7804-44 1084500 1084501 1084502 1084503 CKG7804-44 G7804-280 G7804-44 GL1084500 GL1084501 GL1084502 GL1084503 GLG7804-44

Step1: Shut off gas supply before beginning work.

Step2: Remove the existing pilot assembly and clean the mounting area.

Step3: Install the new assembly in the same position.

Step4: Connect the gas line and wiring according to the the original setup.

Step5: Test ignition and flame to ensure proper operation.

Step6: Keep flammable materials away and ensure proper ventilation.

  • What maintenance is required for the Garland GLG7804-280 Pilot Assembly?

    Clean the pilot assembly regularly to remove grease and debris that can block gas flow. Ensure connections are secure and aligned correctly. Proper maintenance supports accurate ignition and consistent burner operation.

  • What are the common issues with the Garland GLG7804-280 Pilot Assembly?

    • Pilot flame going out frequently.
    • Clogged orifices restricting gas flow.
    • Weak or unstable flame affecting ignition.
    • Misalignment causing improper burner lighting.
    • Gas supply inconsistencies.
    • Thermocouple issues affecting flame detection.
