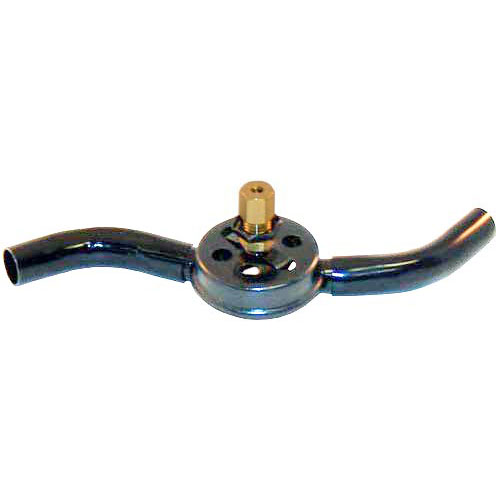

Garland G7804-280 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut & Sleeve

SKU: G7804-280 1-G7804-280 Brand:
Garland
Availability:
Out of Stock
(4)
$19.68 Price reduced from $35.14
Save $15.46
Have a Question? +1 (866) 863-0907

Specifications:

  • Open Top Pilot Assembly,
  • 6" Long, 1/8" Cct Nut & Sleeve, 3" Flash Tube Only,
  • 1-5/8" Dia Ring,
  • For 1/8" X 3 Ft. Copper Clad Steel Tubing Order #26-2271
  • For 1/8" Aluminum Tubing Order #26-1417 (1/8" X 50 Ft. Roll)
  • Garland Series 40/50, G280, H280, P280, G30A, After 1968

Description

The Garland G7804-280 Faucet Open Top Pilot Assembly 6" 1/8" CCT Nut and sleeve directs the gas through the pilot tube, where it ignites at the open top to form a flame that triggers the main burner. The gas flow is maintained as the flame is kept on, which is to start burning the gas when the gas valve is opened. It is attached next to the burner and compatible cooking equipment and is placed in such a manner that the pilot flame contacts the ignition point directly. The tube nut and sleeve attach the gas line and ensure correct positioning in the unit.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 4 in
  • Height: 1.25 in
  • Width: 3 in

GARLAND:

-1084500 -1084501 -1084502 -1084503 -CKG7804-44 -G7804-280 -G7804-44 1084500 1084501 1084502 1084503 CKG7804-44 G7804-44 GL1084500 GL1084501 GL1084502 GL1084503 GLG7804-280 GLG7804-44

Step1: Turn off the gas and power to the appliance for safety.

Step2: Remove access panels to reach the existing pilot assembly.

Step3: Disconnect the gas line and wiring from the old pilot assembly.

Step4: Unscrew and remove the old assembly.

Step5: Install the new pilot assembly, secure with mounting screws.

Step6: Reconnect the gas line and wiring exactly as before.

  • What maintenance is required for the Garland G7804-280 Pilot Assembly?

    Regularly inspect the pilot assembly for soot, debris, or corrosion. Clean the orifice and surrounding components gently to ensure proper ignition. Check connections and alignment, and verify that the pilot flame is steady and correctly positioned.

  • What are the common issues with the Garland G7804-280 Pilot Assembly?

    • Pilot not igniting or intermittent flame.
    • Blocked, dirty orifice.
    • Gas leaks from worn seals or fittings.
    • Misalignment is causing an unstable flame.

Customer Reviews

5 Based on 4 reviews
5 ★
4
4 ★
0
3 ★
0
2 ★
0
1 ★
0
4 reviews
  • Stable Flame
    Caspian —

    Ignition worked properly, flame is steady during repeated lighting cycles.

  • Precision Flow
    Sandborn —

    Great performance, no issues encountered

  • Reliable Operation
    Ebenezer Vining Bodwell —

    Easy installation, consistent heat

  • Excellent choice
    Richard —

    This Open Top Pilot Assembly is excellent. It provides stable ignition and significantly improved the efficiency of my cooking equipment.
