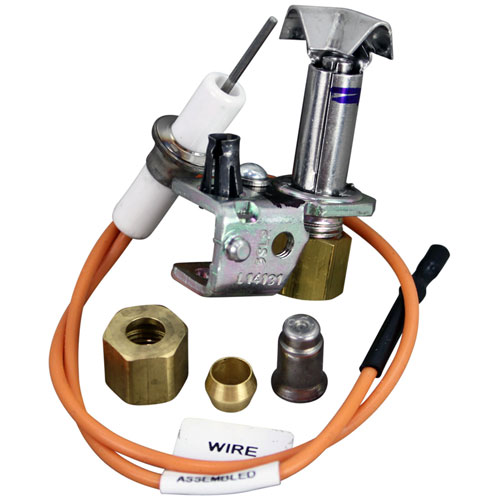

Royal Range 2209 Oven Pilot Assembly Natural gas Spark Igniter

SKU: 2209 1-2209 Brand:
ROYAL RANGE
Availability:
In Stock
(1)
$48.51 Price reduced from $77.00
Save $28.49
Have a Question? +1 (866) 863-0907

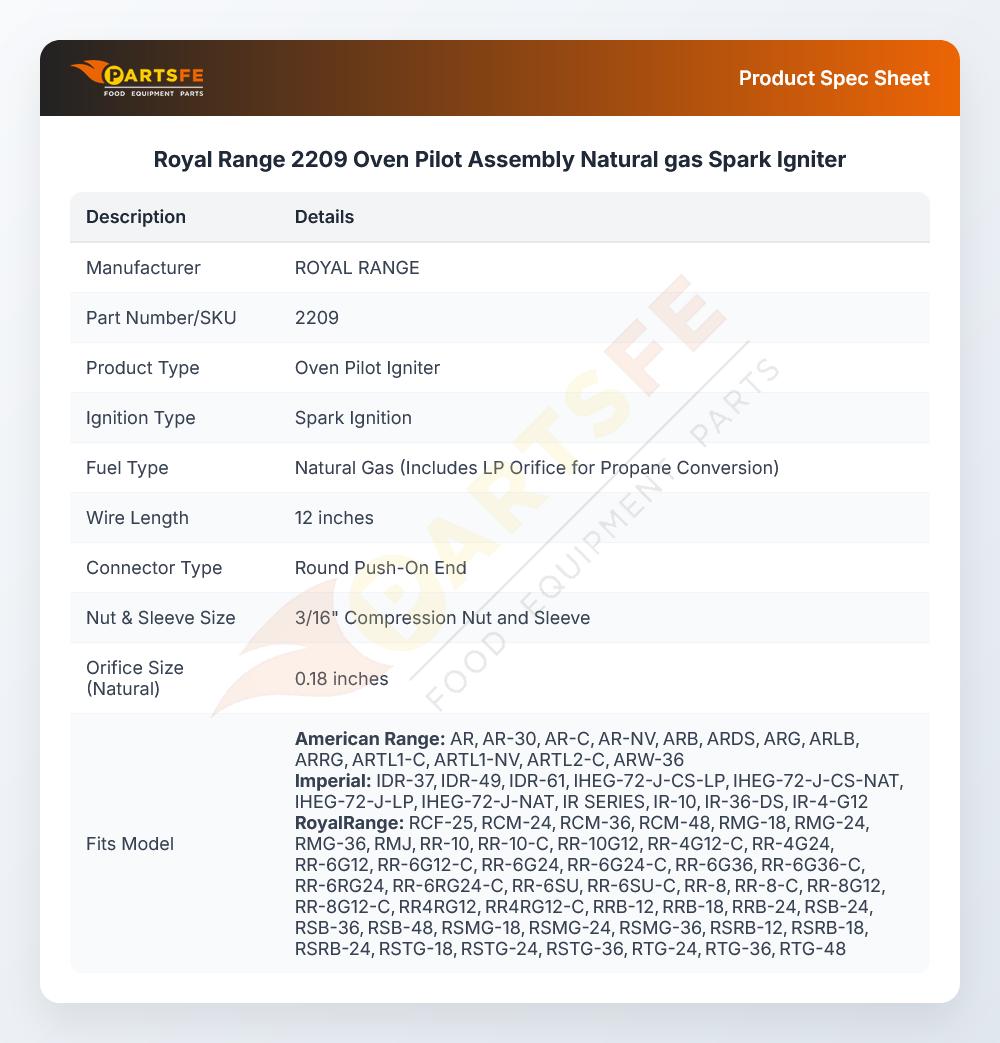

Specifications:

  • Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
  • Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
  • Includes Lp Orifice # 26-1554
  • Includes Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2", # 44-1009
  • American Range Oven Model?
  • Dynamic Cooking Systems
  • Oven Range - Oven Section.
  • Imperial
  • Oven Series: Ir W/Convection Oven.

Description

The Royal Range 2209 Igniter/Pilot Assembly Natural Gas operates by supplying a starting source of flame which triggers the main burner as the oven starts its heating cycle. It works by forcing the gas to the pilot region where the igniter creates and sustains a steady flame to continue burning the burner throughout the operation. This assembly is placed within the oven close to the burner compartment and is attached to gas supply line and positioned to come in direct contact with the main burner to provide uniform ignition.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.5 in
  • Height: 3.5 in
  • Width: 1.5 in

AMERICAN RANGE:

10413 A11104 A11132 A11301 AMR10413 AMRA11104

IMPERIAL:

1119 1120 1120LP 1120NAT IMP1119 IMP1120 IMP1120LP IMP1120NAT

ROYAL RANGE:

2210

Step1: Turn off the gas supply completely and ensure the oven is fully cool.

Step2: Carefully remove the old pilot assembly, noting orientation and tubing placement.

Step3: Mount the new pilot assembly, ensuring all connections are properly aligned.

Step4: Tighten fittings securely and check for leaks using soapy water.

Step5: Ignite the pilot and test for correct operation before using the oven normally.

  • What maintenance is required for the Royal Range 2209 Pilot Assembly?

    Periodically inspect the pilot assembly for dirt, grease, or soot buildup. Clean the orifice and surrounding components carefully to ensure proper ignition. Check connections and alignment, and replace any worn parts to maintain secure and accurate oven operation.

  • What are the common issues with the Royal Range 2209 Pilot Assembly?

    • Difficulty igniting or staying lit.
    • Weak or uneven flame.
    • Clogged, dirty orifice.
    • Loose or misaligned components.
