Imperial 1120 Oven Spark Igniter Pilot Assembly

SKU: 1120 1-1120 Brand:
Imperial
Availability:
In Stock
(0)
$48.51 Price reduced from $77.00
Save $28.49
Have a Question? +1 (866) 863-0907

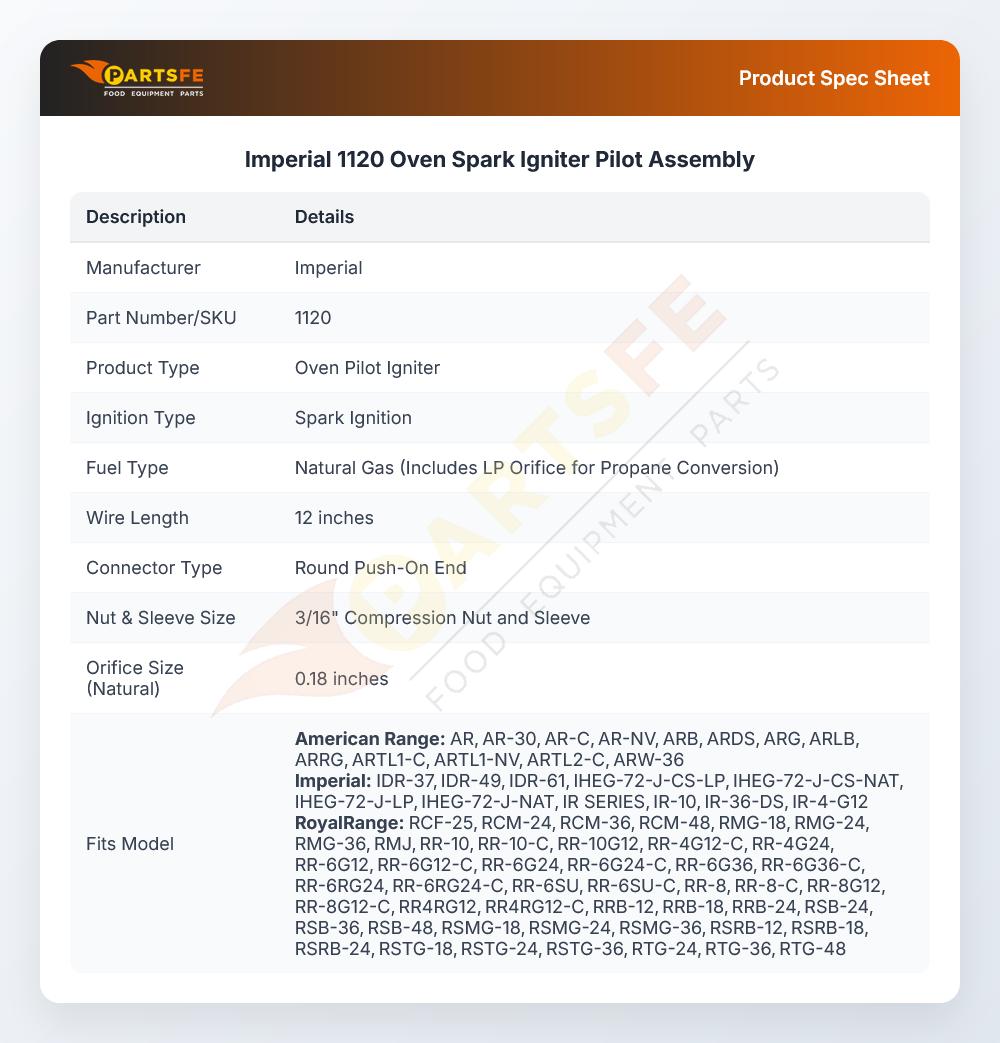

Specifications:

  • Spark Ign Oven Pilot Nat, Igniter W/12" Wire W/ Round
  • Push On End, 3/16" Cct Nut & Sleeve, Orifice Is .18" Nat
  • Includes Lp Orifice # 26-1554
  • Includes Nat Orifice # 26-1555
  • Use Spark Ignition Module "Sm2", # 44-1009
  • American Range Oven Model?
  • Dynamic Cooking Systems
  • Oven Range - Oven Section.
  • Imperial
  • Oven Series: Ir W/Convection Oven.

Description

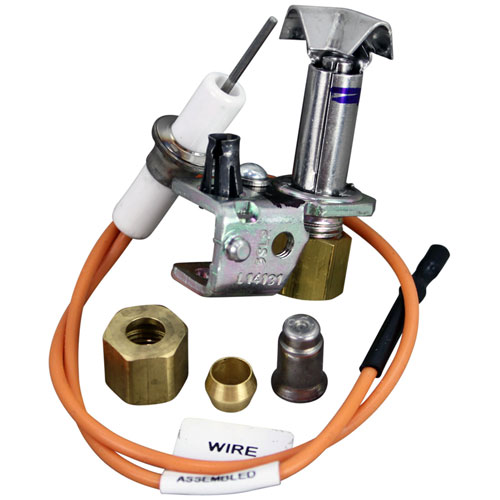

Imperial 1120 Spark Igniter Pilot Assembly NAT is specifically made for Imperial ovens especially the IR series with convection ovens. It has spark igniter with 12 inches wire and round push on end for the best ignition. The assembly comprises of a natural gas orifice 26-1555 and an LP orifice 26-1554 for the convenience of use. Compatible with the SM2 Spark Ignition Module, part number 44-1009, it helps to create a dynamic cooking environment for improved oven capabilities. The assembly is easy to install and is perfect for creating a constant ignition for your oven increasing efficiency and safety.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 2.5 in
  • Height: 3.5 in
  • Width: 1.5 in

AMERICAN RANGE:

10413 A11104 A11132 A11301 AMR10413 AMRA11104

IMPERIAL:

1119 1120LP 1120NAT IMP1119 IMP1120 IMP1120LP IMP1120NAT

ROYAL RANGE:

2209 2210

Step1: Turn off the oven power and gas supply before starting.

Step2: Remove the oven access panel to reach the pilot assembly.

Step3: Disconnect the wires and mounting screws from the old igniter.

Step4: Install the new spark igniter pilot assembly and reconnect all wiring.

Step5: Reattach the panel, restore power and gas, and test ignition for proper operation.

  • What maintenance is required for the Imperial 1120 Igniter Pilot Assembly?

    Regularly inspect the igniter and pilot assembly for food debris or grease buildup. Clean gently with a soft brush and ensure connections are secure. Proper maintenance ensures accurate ignition, prevents misfires, and reduces the risk of gas buildup.

  • What are common issues with the Imperial 1120 Igniter Pilot Assembly?

    • Weak or inconsistent spark.
    • Failure to ignite the oven.
    • Corrosion or buildup on the electrodes.
    • Loose or damaged wiring.
    • Intermittent operation.
