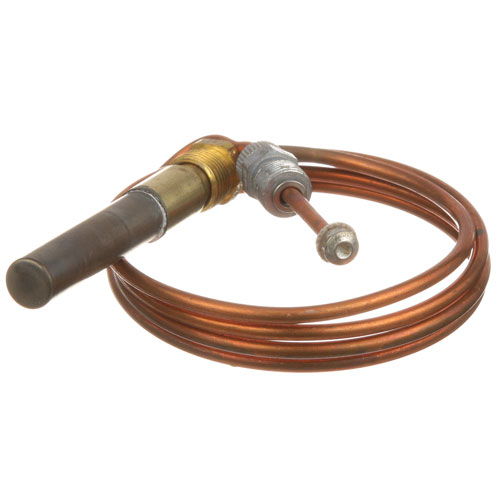

Keating 002567 Coaxial Thermopile 36" 250-750mV

SKU: 002567 1-002567 Brand:
Keating
Availability:
In Stock
(0)
$41.68 Price reduced from $52.72
Save $11.04
Have a Question? +1 (866) 863-0907

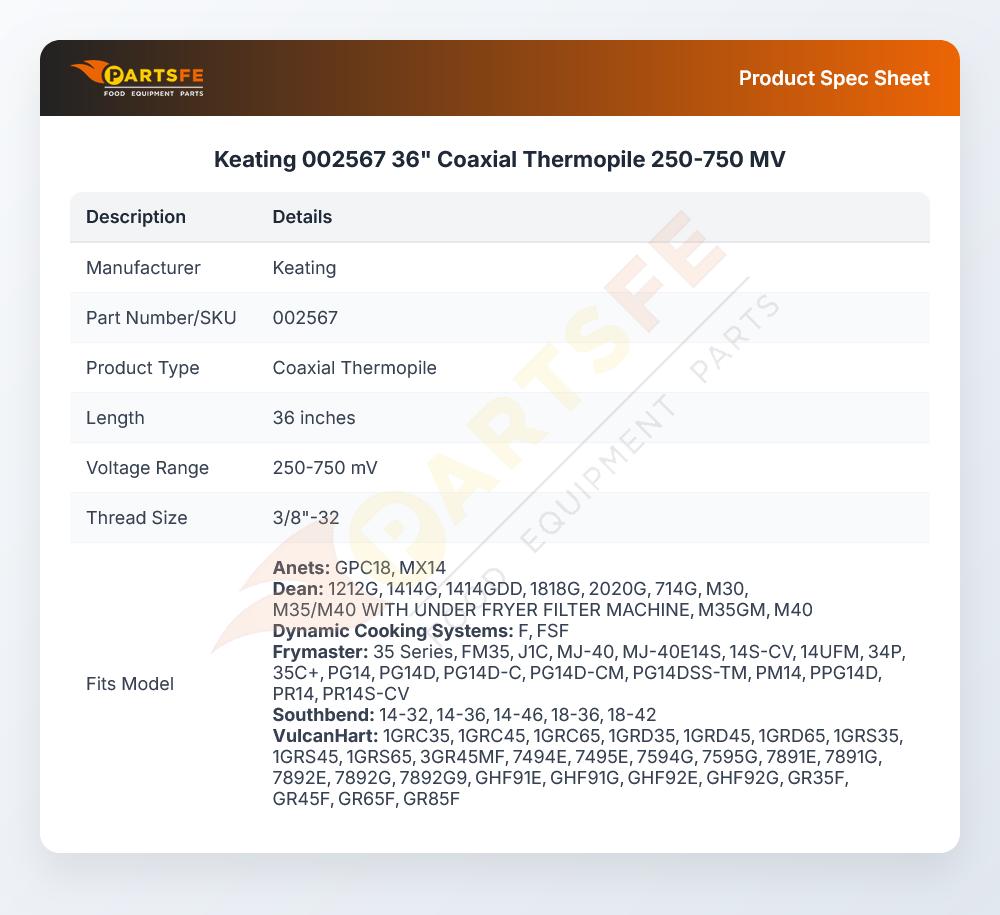

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Keating 002567 Coaxial Thermopile operates by transforming heat of a pilot flame into an electrical signal, which allows an accurate voltage output of 250750 mV. This signal is then used to actuate gas valves, such that the heating equipment is used in a similar manner. It is easily integrated and is installed directly into the pilot assembly of the appliance, and its 36 inch length gives it the flexibility to be placed anywhere in the system. Its coaxial construction makes it easy to connect and at the same time permit it the correct voltage response in different flame conditions.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.63 in
  • Height: 1.13 in
  • Width: 2.75 in

ANETS:

P8905-38

DEAN:

1897 810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

1897 810-0162 8100162 FM1897 FM810-0162 FM8100162

GARLAND:

1093418 1292900 1577001 1897 F810-0162 F810-0617 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-410839-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 P8905-38 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-410839-00001 00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1

Step1: Turn off gas supply and power to the appliance and allow it to cool completely.

Step2: Access the pilot assembly area and remove the old thermopile.

Step3: Position the new thermopile so the tip sits directly in the pilot flame.

Step4: Secure the mounting and route the lead wires carefully away from heat sources.

Step5: Connect wires to the gas valve terminals as originally configured.

Step6: Restore gas and power, then light the pilot.

Step7: Check stable flame sensing and proper millivolt output for safe operation.
