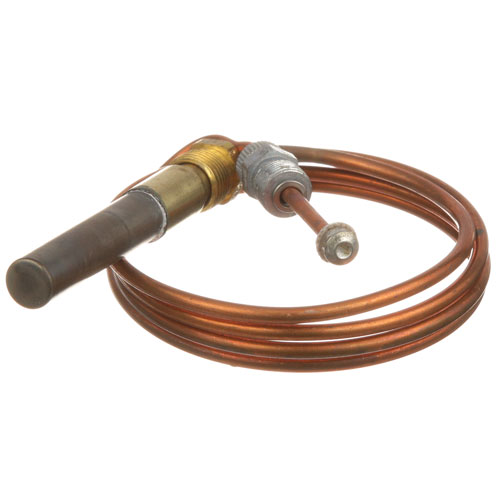

Anets P8905-38 36" Coaxial Thermopile 250-750 MV

SKU: P8905-38 1-P8905-38 Brand:
Anets
Availability:
In Stock
(1)
$41.68 Price reduced from $52.72
Save $11.04
Have a Question? +1 (866) 863-0907

Specifications:

  • 36" Coaxial Thermopile, 250-750 Mv
  • Coaxial Thermopile Threads = 3/8"-32.
  • Robertshaw 1951-53F
  • Vulcan 1Grc35, 1Grc45, 1Grc65, 1Grd45, 1Grd65, 1Grs35,
  • 1Grs45, 1Grs65, Gr35F, Gr45F, Gr65F, Gr85F, Grc35F, Grc45F,
  • Grc65F, Grc85F, Grd35F, Grd45F, Grd65F, Grd85F, Grs35F,
  • Grs45F, Grs65F, Grs85F
  • Wolf Fryer Wtf-42, Ss-Wtf-42
  • Grill Tmm (36, 37, 38)

Description

The Anets P8905-38 Coaxial Thermopile operates by transforming heat produced by a pilot flame into a small electrical signal which triggers gas control components of heating equipment. It operates based on several thermocouple junctions arranged in a coaxial configuration which amplifies the amount of millivoltage generated when in contact with uniform flame. This thermopile is mounted close to the burner and pilot assembly, mounted in a location where it can be exposed to the flames directly but not be damaged by the flames in the internal heating chamber of the appliance.

Dimensions:

  • Weight: 0.2 lbs
  • Length: 3.63 in
  • Height: 1.13 in
  • Width: 2.75 in

DEAN:

1897 810-0162 8100162

DYNAMIC COOKING SYSTEMS:

13257 DCS13257

FRYMASTER:

1897 810-0162 8100162 FM1897 FM810-0162 FM8100162

GARLAND:

1093418 1292900 1577001 1897 F810-0162 F810-0617 GL1093418 GL1292900 GL1577001 GLF810-0162

HOBART:

00-348358-00001 00-410839-00001 00-711335 110839-1 11335 348358-1 410839-00001 410839-1 711335

KEATING:

002567 2567 H00340H KEA2567 KEAH00340H

PITCO:

P5047541 P5047542 PTP5047541 PTP5047542

SOUTHBEND:

1054300 1056400 SOU1054300 SOU1056400

U-LINE:

1951-536 1951-53F

VULCAN HART:

00-410839-00001 00-711335 110839-1 11335 410839-00001 410839-1 711335 VH110839-1 VH410839-1

Step1: Turn off gas and electrical supply and allow fryer or appliance to cool completely.

Step2: Remove access panel to reach pilot assembly and existing thermopile connection.

Step3: Disconnect old thermopile from gas valve terminals.

Step4: Install new coaxial thermopile and position tip securely in steady pilot flame.

Step5: Route lead safely away from heat and moving components, securing with clips.

Step6: Restore gas and power, then check pilot stability and proper millivolt output.

  • What maintenance is required for the Anets P8905-38 Thermopile?

    Inspect the thermopile regularly for soot buildup, corrosion, or loose coaxial connections. Clean the sensing area to maintain proper millivolt output. Ensure it is correctly positioned in the pilot flame. Always turn off the gas supply before servicing to ensure better operation.

  • What are common issues with the Anets P8905-38 Thermopile?

    • Low or inconsistent millivolt output affecting gas valve operation.
    • Pilot flame not generating sufficient voltage.
    • Loose or damaged coaxial lead connections.
    • Improper placement in flame reducing efficiency.
    • Heat damage or residue buildup impacting performance.
